Aluminum grating BP-oN

steelstainless steelfor shelving

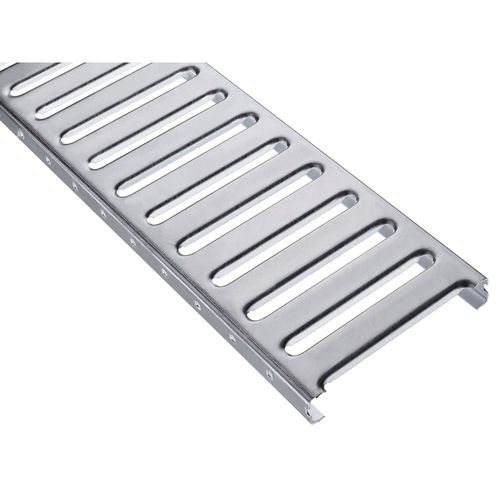

Perforated metal planks, type BP-oN “parallel, ohne Noppen”, is very interesting for shelving areas, due to the smooth surface without holes or nobs. The type BP-oN is especially interesting for cantilever rackings based on its wide free span. Material - Steel S235JR: 1,5 mm, 2,0 mm, 2,5 mm, 3,0 mm Satinless Steel: 1,5 mm, 2,0 mm Aluminium: 2,0 mm, 2,5 mm Surface treatment - Steel: untreated, hot-dip galvanized, pre-galvanized Stainless Steel: untreated, pickled Aluminium: untreated, pickled, anodized Free cross section - max. ~ 27,2% Width - 150 mm, 200 mm, 250 mm, 300 mm (other widths on request) Height - 30 mm, 50 mm, 75 mm, 100 mm, 150 mm (corresponding to width and statical specification, other heights on request) Ball proof - Ø 20 mm (ball with Ø 20 mm can´t fall through / 20 mm ball proof) Serration - R9 Longitudinal grid - 125 mm (62,5 mm) Production length - max. 10 m, depends on transport limit
