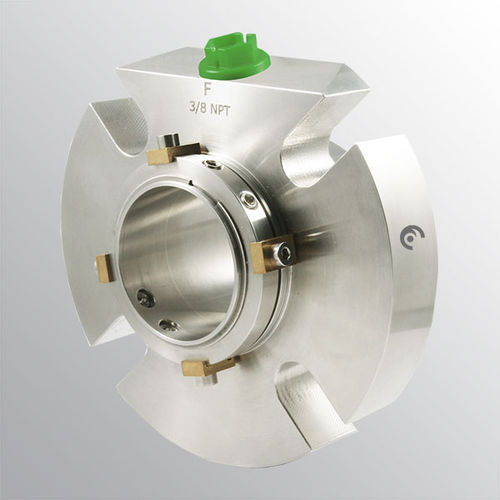

Cartridge mechanical seal LSC40 seriesmultiple-springfor shaftsmetal
Add to favorites
Compare this product
Characteristics
- Type
- cartridge, multiple-spring
- Applications
- for shafts
- Material
- metal
- Other characteristics
- balanced
- Operating pressure
25 bar
(363 psi)- Operating temperature
Max.: 200 °C
(392 °F)Min.: -15 °C
(5 °F)
Description
• - Balanced.
• - Multispring.
• - Not dependent on the rotation direction.
• - Flushing connections.
(*) The temperature resistance depends on the material
of the secondary seals used.
The operating limits are defined by the PV factor which
is determined for the sealing system characteristics and
those of the application.
DESCRIPTION:
A single cartridge with connections for flushing the seal
contact faces. The springs are portected from the pro-
duct to prevent blocking in applications with partide-la-
den fluids. The standard flange has a connection for
flushing to clean and cool the faces (LSC40-F)
CONNECTIONS (R):
From 25 mm to 65 mm: 1/4" NPT.
From 38 mm to 80 mm: 3/8” NPT.
