Multiple-spring mechanical seal LDC80 seriesdual-cartridgefor shaftsfor agitators
Add to favorites
Compare this product
Characteristics
- Type
- multiple-spring, dual-cartridge
- Applications
- for shafts, for agitators
- Material
- metal
- Other characteristics
- face, double
- Operating pressure
16 bar
(232 psi)- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 300 °C
(572 °F)
Description

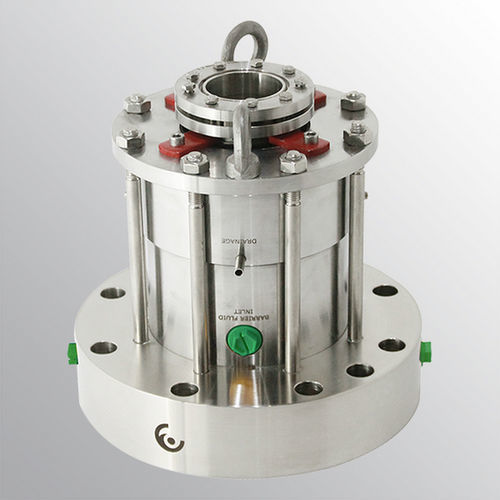

CARTRIDGE SEAL
Double Cartridge Face to Face. Pressure 16 bar, speed 5 m/s
A double cartridge seal specially designed for reactors and stirrers. The double internai seal with a "Back to Back" structure is kept constantly lubricated with a barrier fluid which must be at a pressure of between 1.5 and 2 Kg/cm2 above the working fluid.
Dimensions of the flange according to DIN 28141, ends of the shaft based on DIN 28154 and for Steel tanks DIN 28136.
