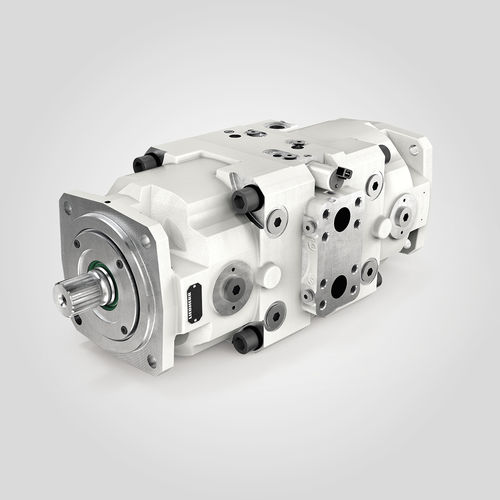

Axial piston hydraulic motor DMVA series
high-pressurevariable-displacementopen circuit

Axial piston hydraulic motor - DMVA series - Liebherr Machines Bulle SA - high-pressure / variable-displacement / open circuit
Axial piston hydraulic motor - DMVA series - Liebherr Machines Bulle SA - high-pressure / variable-displacement / open circuit
Axial piston hydraulic motor - DMVA series - Liebherr Machines Bulle SA - high-pressure / variable-displacement / open circuit - image - 2
Add to favorites
Compare this product


Characteristics

Technology
axial piston
Other characteristics
high-pressure, variable-displacement, open circuit, closed circuit, flange-mount, double-displacement
Pressure

Max.: 500 bar
(7,252 psi)

450 bar
(6,527 psi)

Min.: 0 bar
(0 psi)

Rotational speed

Max.: 4,500 rpm
(28,274.33 rad.min-1)

Min.: 2,700 rpm
(16,964.6 rad.min-1)

Torque

Max.: 2,631 Nm
(1,940.53 ft.lb)

Min.: 1,885 Nm
(1,390.3 ft.lb)

Displacement

Max.: 384.3 cm³
(12.99 US fl oz)

Min.: 275.5 cm³
(9.32 US fl oz)

Description

The DMVA motor with a swashplate design can be employed as a single or double motor. With an unrivaled adjustability of up to 22° it can be adapted flexibly to a broad conversion range according to its operational requirements. It also features an impressive high performance and efficiency.
