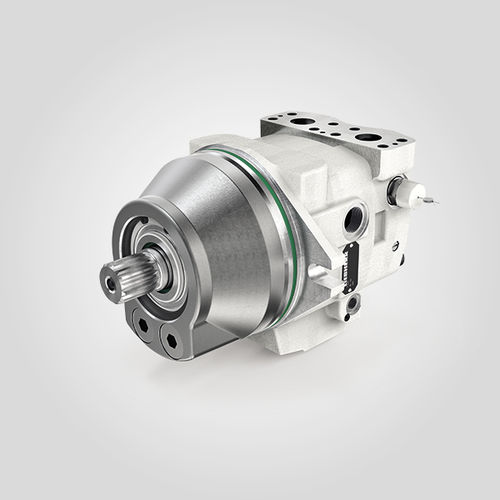

Axial piston hydraulic motor FMV
compactvariable-displacementhigh-pressure

axial piston hydraulic motor
axial piston hydraulic motor
Add to favorites
Compare this product


Characteristics

Technology
axial piston
Other characteristics
compact, variable-displacement, high-pressure, open circuit
Pressure

350 bar, 420 bar (5,076 psi)

Min.: 0 bar (0 psi)

Max.: 450 bar (6,527 psi)

Rotational speed

Min.: 2,600 rpm (16,336.28 rad.min-1)

Max.: 5,460 rpm (34,306.19 rad.min-1)

Torque

Min.: 394 Nm (290.6 ft.lb)

Max.: 1,349 Nm (994.97 ft.lb)

Displacement

Min.: 75 cm³ (3 US fl oz)

Max.: 257 cm³ (9 US fl oz)

Description

FMV plug-in motors have a swashplate design and are available for the open circuits. They convince with their compact and robust design. The engine is regulated by means of a two-point control via the operating pressure. Hydraulic component - Axial piston motor Circulation - open Adjustability - variable Nominal sizes - 100 / 140 / 165 / 250 / 75 The Liebherr axial piston motor FMV series is developed for the open and closed circuit in swash plate design. The var- iable plug-in motors are available in nominal sizes ranging from 75 to 250 cm³. The nominal pressure is 350 bar for sizes 100 to 250 cm³, maximum pressure 380 bar. For size 75 the pressure rates are 420 and 450 bar. Special features of the FMV: The plug-in motor has a hydraulic two point control. Various flushing and pressure valves for the open and closed circuit are integrated into the port plate. Speed sensor or preparation for speed sensor available on request.
