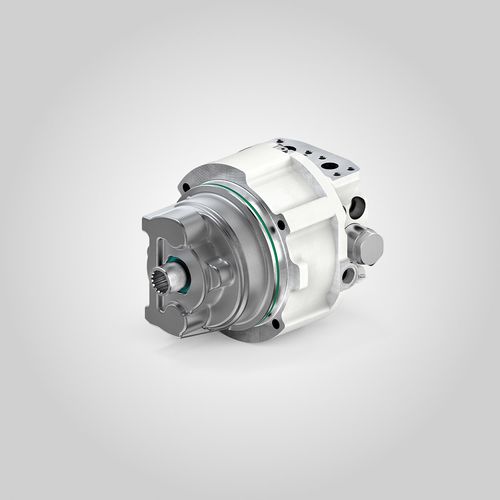

Axial piston hydraulic motor CMVE seriescompactvariable-displacementopen circuit
Add to favorites
Compare this product
Characteristics
- Technology
- axial piston
- Other characteristics
- compact, variable-displacement, open circuit
- Pressure
Max.: 400 bar
(5,802 psi)380 bar
(5,511 psi)Min.: 0 bar
(0 psi)- Rotational speed
Max.: 3,900 rpm
(24,504.42 rad.min-1)Min.: 3,000 rpm
(18,849.56 rad.min-1)- Torque
Max.: 951 Nm
(701.42 ft.lb)Min.: 488 Nm
(359.93 ft.lb)- Displacement
Max.: 165.9 cm³
(5.61 US fl oz)Min.: 85.2 cm³
(2.88 US fl oz)
Description
The axial piston motors of the CMVE series are orientated around use in various crawler vehicles. The compact design results in an optimum performance to weight ratio. Special features of the CMVE motor are the integrated multi-disk brake, the integrated brake valve with automatic brake release as well as the flushing and pressure limiting valves.
Circulation - open
Adjustability - variable
Areas of application - Agriculture and forestry / Building construction and civil engineering / Special vehicles
