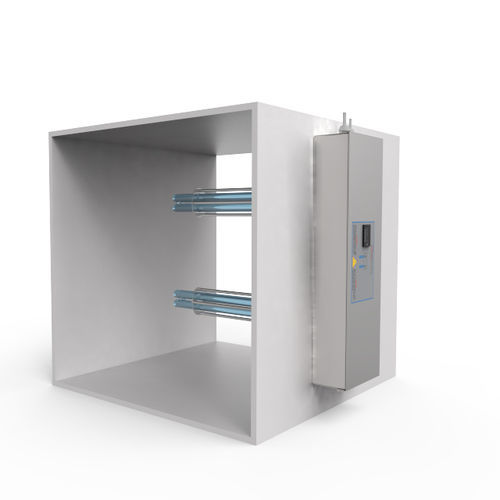

Air conditioning disinfection unit UV-DUCT-FL-NX
UVCfor the food industryfor the pharmaceutical industry

air conditioning disinfection unit
air conditioning disinfection unit
air conditioning disinfection unit
air conditioning disinfection unit
air conditioning disinfection unit
air conditioning disinfection unit
air conditioning disinfection unit
Add to favorites
Compare this product


Characteristics

Type
UVC
Applications
for the food industry, for the pharmaceutical industry, for air conditioning, for hospitals, for school, office
Mobility
stationary
Flow

Max.: 5,600 m³/h
(197,762.13 ft³/h)

Min.: 1,000 m³/h
(35,314.67 ft³/h)

UV bulb wattage

70 W, 120 W, 190 W

Length

411 mm
(16 in)

Width

128 mm
(5 in)

Height

249 mm, 478 mm, 574 mm
(10 in, 19 in, 23 in)

Weight

2 kg, 2.5 kg
(4.4 lb, 5.5 lb)

Description

Applied inside ducts, or in the final section of AHU (Air Handling Unit) UV-DUCT-FL-NX creates an UVGI barrier that inhibits the proliferation of dangerous viruses, bacteria, moulds and spores settling inside Air Conditioning Systems. UV-DUCT-FL-NX purifies homogeneously the airflow running through its powerful lamps, eliminating the microbial load and the spreading and distribution of hazardous and annoying pathogens inside buildings. In AC systems an unpleasant biofilm covers usually all inner surfaces as the result of microorganisms combination and favorable conditions for their proliferation, such as temperature changes, high humidity and darkness. UV-DUCT-FL-NX inhibits the creation of this biofilm increasing Indoor Air Quality and comfort. More specifically, the use of UV-DUCT-FL-NX eliminates important issues related to AC Systems and deadly illnesses (such as Legionella Pneumophila, Tuberculosis, Flu, etc.) but also “Sick Building Syndrome”, “Monday Fever”, Asthma and Allergies. UV-DUCT-FL-NX allows also the control of Hygiene high standards in Food industry and fights against Healthcare Associated Infections (HAI) in hospitals. UV-DUCT-FL-NX application is important not only for IAQ and health, but a cleaner AC system is also more efficient from an economic point of view, with less operative and maintenance costs. As a matter of fact, using UVGI the need of filters replacement and clean of inner surfaces is less necessary than usual.
