UV disinfection unit UV-STICK-AX-SCR series

for the pharmaceutical industryfor air conditioningfor hospitals

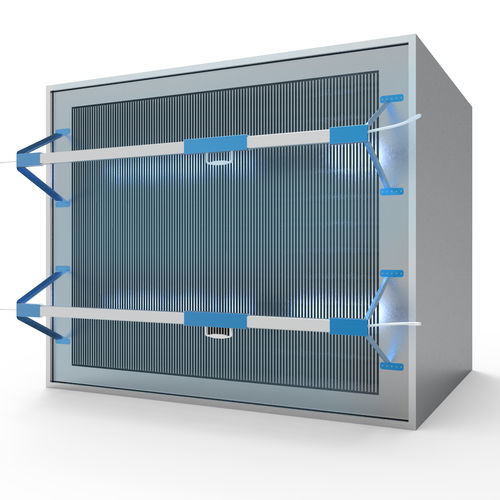

UV-STICK...AX-SCR device includes a series of UV-C reglette of reduced size and different lengths, to irradiate thermal batteries (coils) and internal filter sections of AHU - Air Handling Unit – in central air conditioning systems; their purpose is to eliminate the microbial load. The device is a reglette built entirely in extruded anodized aluminum, IP55 protection and fitted with a reflecting screen in mirror bright aluminum, to increase the power of radiation, through the reflection of UV-C proportion that would otherwise be wasted in the opposite direction to the useful ones. The extruded aluminum case, contains special electronic ballasts to maximize yield and duration of UV-C lamp. To avoid flying splinters of glass after the collapse of the UV lamp, a protection of the UV lamp by means of the special thermo-retracted sheath UVLON®-PIPE (Tetrafluoroethylene), with UV-C transparency >85%. can be provided, always as an option UVLON®-PIPE is a patented system to withstand the wear and tear; it has low adhesion to any product or substance, is resistant to any aggressive chemical at high or low temperatures. It is a polymer conforms to F.D.A. tests for use with foodstuffs. The constituent materials of UV-STICK...AX allow its use even in harsh operating conditions (high humidity, low temperatures, etc..), or where conditions require a high resistance to chemicals and weathering. We suggest to install one or more UV-STICK…AX-SCR in a layout that allow the device/s to irradiate coil’s surface entirely, to obtain an homogenous treatment of inner surfaces. For this reason Light Progress offers a special and adjustable mounting kit to install devices properly.
