Manifold valve
piston actuatorelectrichydraulic

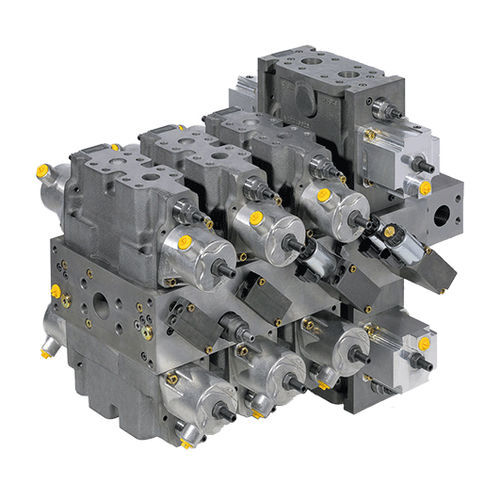

Manifold valve - LINDE HYDRAULIC - piston actuator / electric / hydraulic

Add to favorites

Compare this product

Characteristics

Type

piston actuator

Operation

electric, hydraulic

Function

for control

Body

modular, manifold

Applications

plate

DN

18 mm, 25 mm, 30 mm
(0.709 in, 0.984 in, 1.181 in)

Pressure

Max.: 420 bar
(6,091.6 psi)

Min.: 6 bar
(87 psi)

Temperature

Max.: 90 °C
(194 °F)

Min.: -20 °C
(-4 °F)

Flow rate

400 l/min, 500 l/min, 600 l/min, 700 l/min, 1,000 l/min
(105.67 us gal/min, 132.09 us gal/min, 158.5 us gal/min, 184.92 us gal/min, 264.17 us gal/min)

Description

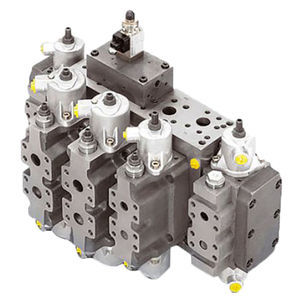

Manifold valve plates of series VT modular are made up of individual components of a modular building block system. This is why manifold valve plates can be configured to optimally match any application with one up to eight actuators. Advantages simple configuration quick availability modular design for the configuration of valve plates for 1-8 actuators follows up to 600 l/min per actuator hydraulic or electric piloting with identical machine response low warehouse costs and high serviceability due to high proportion of identical parts for various manifold valve plate configurations Design characteristics directional control valves available as sub plate mounted valves nominal sizes 18, 25 and 30 modular design for the configuration of valve plates for 1-8 actuators designed for the Linde Synchron Control (LSC) – Load Sensing System flows up to 600 l/min (size30) optionally with hydraulic, electric or combined piloting
