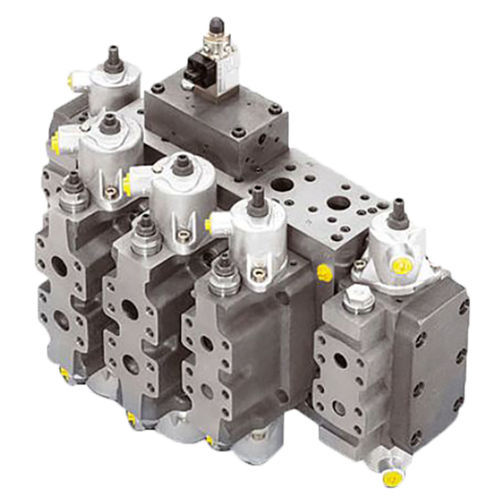

Spool hydraulic directional control valve LSC

hydraulically-operated

LSC stands for high handling performance due to load-independent and sensitive machine conduct. Fast and direct. The Linde Synchron Control System, in open loop circuits, converts the commands of the machine driver into direct signals to the actuators. The easy control of all components supports efficient fatigue-free working. Simultaneous load-independent movements and a pump control ”on demand” are preconditions for fast working cycles with at the same time low operation cost. Safety and optimum exploitation of the machine are, apart from power regulation and high pressure relief, provided by the optional priority selection. Even with synchronous control of several functions the priority mode guarantees preferential operation of predominant actuators. Advantages excellent control with all flows load independent precision metering dynamic response for fast working cycles energy savingintegral simple sensitive operation high reliability long service life Design characteristics closed centre load sensing directional control valves in spool design monoblock or single valve design horizontal and vertical installation SAE high pressure ports hydraulic or electric proportional control extension of valve blocks possible by single valves valves can be mounted directly onto the actuator NEW: modular building block system Integrated functions fine mode priority selection pressure limitation for load sensing and regulating pump step-up function torque control function load holding function lowering throttles make upanti-cavitation security by adjustable return line
