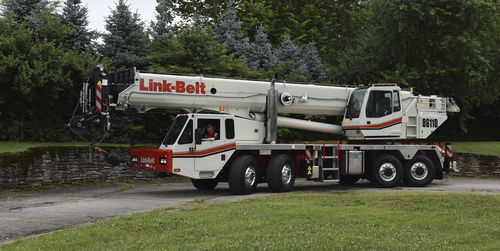

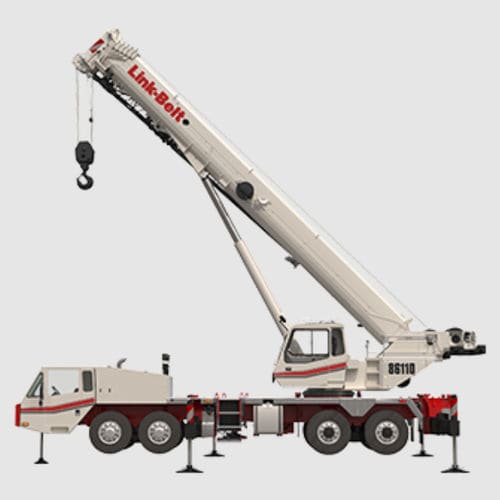

Truck-mounted crane HTT-86110

boomtelescopicall-terrain

Nominal Capacity @ Radius 100 mt @ 2.1 m Telescope System Pin & Latch Attachment - Option 1 A: 10.7 m Bi-Fold Lattice Fly / B: 3 m – 10.7 m – 17.7 m Bi-Fold Lattice Fly Attachment - Option 2 (1) or (2) 4.9 m insert(s) Maximum Tip Height 79.7 m Maximum Line Pull 92.3 kN Attachment - Option 1 150.9 m/min Key Features Greaseless 38.3 ft – 164.1 ft pin and latch six-section boom Manually offsetable one-, two-, or three-piece fly: offsetable to 0°, 15°, 30°, and 45° One or two available lattice extensions to reach max tip height of 262 ft Full three-piece fly is stowable on the machine, and no capacity deducts for stowed attachment Excellent transportability — can be configured to meet some of the toughest transportation laws in North America Steerable rear axles — simple control switch in the carrier cab Greatly reduced turning radius during travel Front and rear tires and wheels are interchangeable Transports under 105,000 lbs with 16,000 lbs of counterweight, three-piece fly, and 10-t ball installed “Stow ‘n go” outrigger pontoons are easily secured for transport Cummins X12: EPA 2022 Compliant On-Highway 455 HP Engine ZF TraXon (no clutch pedal) Manual Transmission Link-Belt Pulse operating system, including CALC-selectable outrigger extension system Link-Belt Vision Package – Standard Flat deck design — maintains four points of access regardless of upper position Pull-out CabWalk for ease of access to and from the operator’s cab
