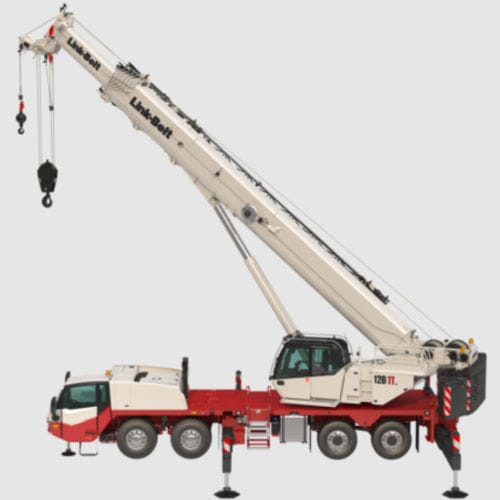

Truck-mounted crane 120|TTLB

telescopicfor constructionlifting

Nominal Capacity @ Radius 110 mt @ 2.1 m Telescope System Pin & Latch Attachment - Option 1 A: 10.7 m Bi-Fold Lattice Fly / B: 3 m – 10.7 m – 17.7 m Bi-Fold Lattice Fly Maximum Tip Height 80.1 m Maximum Line Pull 105.1 kN Maximum Speed 107.9 m/min Key Features Greaseless 39.3 ft – 196.9 ft pin and latch six-section boom Link-Belt SmartFly: different configurations to address any job site need NEW for the 120|HT: three-piece (9.5 ft – 35 ft – 58 ft) fly with integrated heavy-lift section: offsetable to 0°, 15°, 30°, and 45° One or two available lattice extensions to reach max tip height of 263 ft Full three-piece fly is stowable on the machine, and no capacity deducts for stowed attachment Excellent transportability — can be configured to meet some of the toughest transportation laws in North America Steerable rear axles — simple control switch in the carrier cab Greatly reduced turning radius during travel Front and rear tires and wheels are interchangeable Industry-first suspension and axle design: independent air ride suspension and air disc brakes Highest gross axle rating (51,200 lbs on front tandem) of any other truck crane in the market Transports at 110,000 lbs with 20,000 lbs of counterweight, three-piece fly, 60-t block, and 10-t ball installed Cummins X12 Engine: EPA 2022 Compliant On-Highway 455 HP Engine ZF TraXon (no clutch pedal) Manual Transmission Link-Belt Pulse 2.0 operating system, including 81-position V-CALC-individual outrigger extension system Link-Belt Vision Package & full LED lighting package – Standard All new carrier cab: NEW wider carrier cab — nine inches wider than previous generation of truck crane cab
