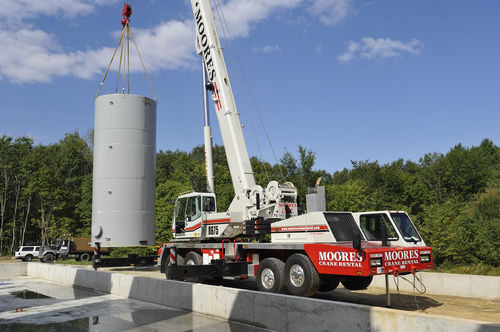

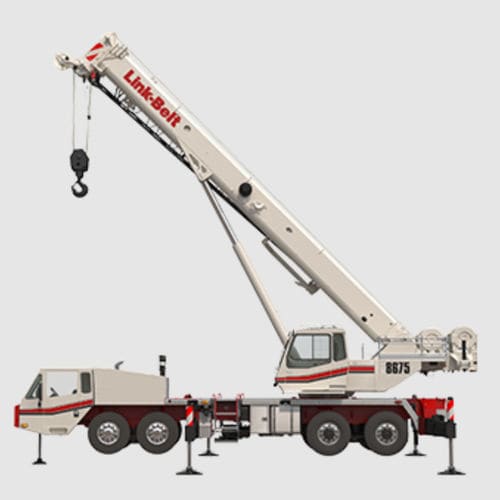

Truck-mounted crane HTT-8675 Series II

telescopicall-terrainfor construction

Nominal Capacity @ Radius 65 mt @ 2.7 m Telescope System Pin & Latch Attachment - Option 1 A: 11.6 m Bi-Fold Lattice Fly / B: 11.6 m – 19.5 m Bi-Fold Lattice Fly Attachment - Option 2 (1) or (2) 4.9 m insert(s) Maximum Tip Height 70.2 m Maximum Line Pull 57.5 kN std cable / 99.6 kN opt cable Maximum Speed 140.2 m/min Key Features Greaseless 41 ft – 127 ft pin and latch four-section boom Manually offsetable one- or two-piece fly: offsetable to 2°, 15°, 30°, and 45° Full fly is stowable on the machine, and no capacity deducts for stowed attachment Excellent transportability — can be configured to meet some of the toughest transportation laws in North America Steerable rear axles — simple control switch in the carrier cab Greatly reduced turning radius during travel Front and rear tires and wheels are interchangeable Transports under 95,000 lbs with 14,400 lbs of counterweight, fly, and 10-t ball installed “Stow ‘n go” outrigger pontoons are easily secured for transport Cummins X12: EPA 2022 Compliant On-Highway 450 HP engine ZF AS-Tronic (no clutch pedal) Manual Transmission Link-Belt Pulse operating system, including CALC-selectable outrigger extension system Link-Belt Vision Package – Standard Flat deck design — maintains four points of access regardless of upper position Pull-out CabWalk for ease of access to and from the operator’s cab
