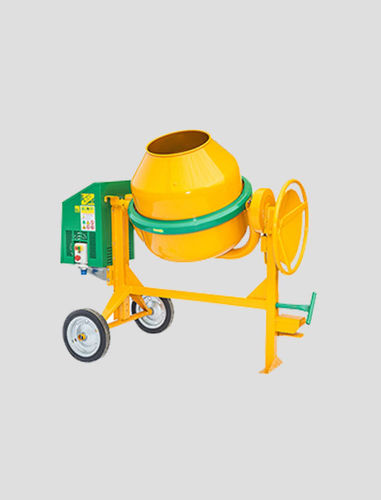

Gasoline engine concrete mixer S 250

diesel engineelectricmobile

Description
The Model S 250 is an industrial cement mixer designed for site and light prefabrication work. It combines a 242 L drum with multiple drive options (electric, petrol, diesel) to adapt to on-site power availability and production needs.

Key specifications

• Model: S 250
• Drum capacity: 242 L
• Approx. mixing (work) capacity: 205 L (variable depending on material)
• Weight (with electric motor): 170 kg
• Dimensions (L x W x H): 175 cm x 96 cm x 145 cm
• Electric motor: 1.5 HP
• Petrol engine: 6 HP
• Diesel engine: 5–7 HP
• Cement bag capacity: 1.5 x 25 kg (variable depending on material)

Features

• Ventilated electric motor enclosure for improved cooling and component protection
• Powered discharge with a large, strong pinion to reduce operator effort when emptying the drum
• Solid rubber wheels designed for maximum traction on site terrain
• Central counter-bottom and bolted, easily replaceable blades to improve mixing efficiency and simplify maintenance

Notes
Technical data and dimensions are indicative and subject to change without notice. Actual mixing capacity varies with material type and mix design.

Applications

• Small to medium construction sites
• Masonry and repair work
• On-site concrete production for precast and civil works
• Remote jobsites where versatile power options are required
