Diesel engine concrete mixer S 320

gasoline engineelectricmobile

Description
Portable traditional cement mixer for site use. Drum capacity 312 L with an approximate working capacity of 275 L. Available with electric (1.5 HP), petrol (6–7 HP) or diesel (5–9 HP) drive options. Designed for on-site mixing tasks and small precast applications.

Features

• Drum capacity: 312 L
• Working capacity (approx.): 275 L*
  *Variable according to material type
• Weight with electric motor: 220 kg
• Dimensions (L x W x H): 198 cm x 100 cm x 150 cm
• Electric motor: 1.5 HP
• Petrol engine option: 6–7 HP
• Diesel engine option: 5–9 HP
• Cement bags capacity: 2 x 25 kg*
  *Variable according to material

Detail pictures (captions)

• Machine equipped with a towing bar to facilitate transport
• Wheels in solid rubber designed for maximum traction on site
• Counter-bottom in the centre of the drum pushes material to the sides where blades crush and mix more effectively; blades are bolted and replaceable
• Reduced effort to discharge the drum thanks to the large and robust tilting gear
• Electric motor housing equipped with ventilation openings

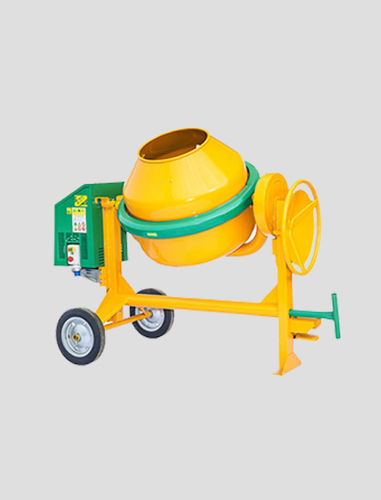

• Model S 320 (main product image)

Notes
Data and dimensions are not binding; the company reserves the right to make changes without notice.

Technical specifications

• Drum capacity: 312 L
• Working capacity (approx.): 275 L (variable according to material)
• Weight (with electric motor): 220 kg
• Dimensions (L x W x H): 198 cm x 100 cm x 150 cm
• Motor options: Electric 1.5 HP; Petrol 6–7 HP; Diesel 5–9 HP
• Cement capacity: 2 x 25 kg (variable according to material)
• Design: traditional mixer drum with central counter-bottom, bolted replaceable blades, transport tow bar and solid rubber wheels, ventilated motor housing
• Remark: Data and dimensions non-binding; subject to change
