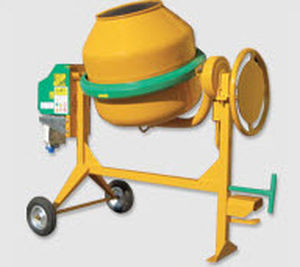

Electric concrete mixer S 200

gasoline enginemobilestand-alone

Description
Cement mixer for on-site mixing of concrete and mortar. Designed for small to medium construction tasks and rental fleets. Available with electric or petrol drive; diesel version not provided.

Features

• Drum capacity: 190 L
• Mixing (work) capacity (approx.): 160 L (variable depending on material)
• Weight (with electric motor): 120 kg
• Dimensions (L x W x H): 165 cm x 80 cm x 135 cm
• Electric motor: 0.75 HP
• Petrol engine: 6 HP
• Diesel engine: none
• Cement bag capacity: 1 x 25 kg (variable)

Details (image captions)

• Electric motor housing includes ventilation openings
• Discharge assisted by a large, robust pinion to reduce effort
• Solid rubber wheels designed to provide maximum traction on site
• Central counter-bottom in the drum directs material to the sides where bolted, replaceable blades crush and mix more effectively

Additional information

• Brochure available (PDF)

Technical specifications

• Model: Model S 200
• Brand: Lino Sella
• Drum capacity: 190 L
• Work capacity (approx.): 160 L
• Weight (with electric motor): 120 kg
• Dimensions (L x W x H): 165 cm x 80 cm x 135 cm
• Electric motor: 0.75 HP
• Petrol engine: 6 HP
• Diesel engine: none
• Cement bag capacity: 1 x 25 kg
