Commercial tent

transportablefor event organizationdisassemblable

Product Overview

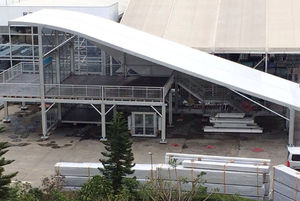

Deck Structure separates a double-decker tent into distinct first and second floors to create a modular, multi-level temporary building. It is designed to convert a single-decker tent into a double-decker layout quickly and cost-effectively by adding a structural deck platform and associated components.

Key Features

• Available clear spans: 10 m, 15 m, 20 m, 25 m, 30 m, 40 m.
• Length extends by multiples of 5 m (bay distance = 5 m).
• Side (eave) height: 6.75 m (standard for listed spans); ridge (ridge) height varies by span (see specification).
• Main structural profile: 300 x 120 x 5 mm (4-channel) for the listed spans.
• Four side walls can be mixed: transparent glass panels and white ABS walls.
• Optional interior upgrades: VIP flooring, wave-shaped roof lining and other fit-outs.
• Typical uses: double-decker tent conversion, VIP receptions, brand activations, lounge/dining areas, wedding and event spaces.

Applications

• Upgrade single-decker tents to a double-decker configuration as a cost-effective solution.
• VIP lounges and receptions for sports events and brand activations.
• Wedding receptions, dining lounges and other temporary premium venues.
• Advertising banner placement and sponsor logo printing on walls for events.

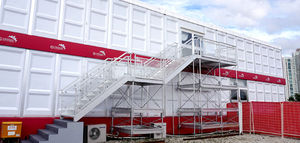

Double Decker Tent Stairs Type

• A1
• A2
• B
• C1
• C2
• D
• E1
• E2

Product Specification (table)
Span Width | Eave Height | Ridge Height | Bay Distance | Main Profile
10 m | 6.75 m | 8.50 m | 5 m | 300x120x5 mm (4-channel)
15 m | 6.75 m | 9.34 m | 5 m | 300x120x5 mm (4-channel)
20 m | 6.75 m | 10.17 m | 5 m | 300x120x5 mm (4-channel)
25 m | 6.75 m | 11.00 m | 5 m | 300x120x5 mm (4-channel)
30 m | 6.75 m | 11.75 m | 5 m | 300x120x5 mm (4-channel)
40 m | 6.75 m | 13.50 m | 5 m | 300x120x5 mm (4-channel)

Additional Visual / Technical Options

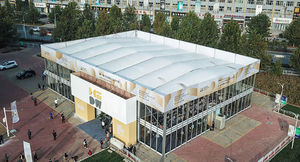

• Span visual examples for 10 m to 30 m and 40 m.

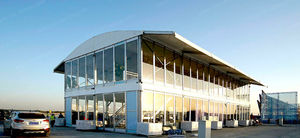

• Mix-and-match wall solutions (glass, ABS) for aesthetic and functional customization.

Patents
Product patents: ZL201120397654.4; ZL201520433483.4; ZL201520503051.6; ZL201520411133.8; ZL201620667371.X

Technical specifications / key points

• Product name: Deck Structure
• Available clear spans: 10 m / 15 m / 20 m / 25 m / 30 m / 40 m
• Bay distance (module length): 5 m (extendable by multiples of 5 m)
• Eave (side) height: 6.75 m
• Ridge heights (by span): 10 m → 8.50 m; 15 m → 9.34 m; 20 m → 10.17 m; 25 m → 11.00 m; 30 m → 11.75 m; 40 m → 13.50 m
• Main structural profile: 300 x 120 x 5 mm (4-channel)
• Wall options: transparent glass panels and white ABS walls (mixable)
• Optional interior upgrades: VIP flooring, wave-shaped ceiling lining, other facilities
• Primary uses: double-decker conversion, VIP reception, brand events, weddings, sports events
• Patents listed above
