Commercial tent

for event organizationeventfire-retardant

General Details

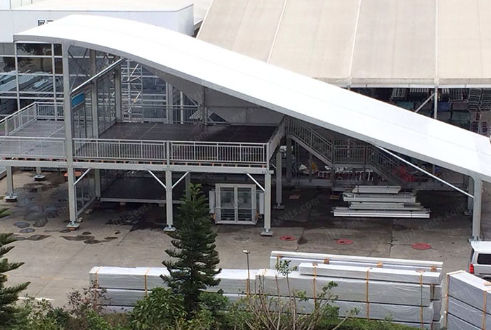

The Half Dome Double Decker Tent is a modified double-decker tent designed for large-scale events and VIP viewing. The frame uses hard-pressed aluminum alloy, the cover is flame-retardant double PVC-coated polyester fabric, and the second-story floor is a plywood flooring system. The structure combines an A-type roof and an arced double-decker geometry with visual-aesthetic elements, providing higher wind resistance than a standard tent.

The tent includes an added VIP bleacher on the second story to expand viewing horizons. Typical applications include golf tournaments, equestrian events, car racing and other high-level events that require elevated spectator areas and premium sight lines.

If you plan a large event with international exposure, LIRI TENT’s Half Dome Double Decker Tent is a recommended solution.

Patents
ZL201520433483.4, ZL201120397654.4, ZL201520433470.7, ZL201520503051.6, ZL201520411133.8

Double Decker Tent Stairs Type

• A1
• A2
• B
• C1
• C2
• D
• E1
• E2

Product Specification
Span Width | Eave Height | Ridge Height | Bay Distance | Main Profile
10m | 6.75m | 8.50m | 5m | 300x120x5mm (4-channel)
15m | 6.75m | 9.34m | 5m | 300x120x5mm (4-channel)
20m | 6.75m | 10.17m | 5m | 300x120x5mm (4-channel)
25m | 6.75m | 11.00m | 5m | 300x120x5mm (4-channel)
30m | 6.75m | 11.75m | 5m | 300x120x5mm (4-channel)
40m | 6.75m | 13.50m | 5m | 300x120x5mm (4-channel)

Features / Technical specifications

• Frame: hard-pressed aluminum alloy
• Cover: flame-retardant double PVC-coated polyester fabric
• Second-story flooring: plywood flooring system
• Roof / structure: A-type roof combined with arced double-decker geometry and visual-aesthetic elements
• Wind rating: designed for higher wind resistance than standard tents
• Additional features: extra VIP bleacher on second story for improved viewing
• Typical uses: golf events, equestrian events, car racing and other high-level events
• Available spans: 10m, 15m, 20m, 25m, 30m, 40m
• Standard eave height: 6.75m
• Bay distance: 5m
• Main profile: 300x120x5mm (4-channel)
• Patents: ZL201520433483.4; ZL201120397654.4; ZL201520433470.7; ZL201520503051.6; ZL201520411133.8
