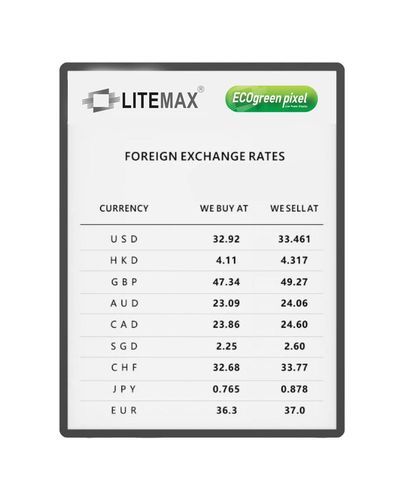

Digital monitor ELD4202-EGR-A11

42"2160 x 2880VESA mounting

Overview
42-inch electronic paper display designed for reflective, low-power signage and applications requiring high readability in direct sunlight.

• Bi-stable reflective technology (e-paper)
• Low power consumption (typical 0.6 W; max 13.5 W during update)
• Sunlight-readable with 40% reflectance
• High resolution 2160 × 2880 (3:4)
• Monochrome with 16 gray levels
• Wide operating temperature: -15 °C to 65 °C
• Display area: 639 × 853.2 mm

Main Features

• ESG compliant design
• Low power consumption suitable for always-on signage
• Optional front light and cover glass
• Android 11 platform for content management

Specifications

• Model name: ELD4202-EGR-A11 (marketed as ELD4202-E)
• Display size: 42"
• Display area: 639 (W) × 853.2 (H) mm
• Resolution: 2160 × 2880 (3:4)
• Color: Monochrome, 16 gray levels; Reflectance: 40%; Contrast ratio: 12
• Image update time: 0.5 s
• Processor: Arm A55 1.8 GHz quad-core
• Memory: 2 GB DDR4; Storage: 8 GB eMMC
• Operating system: Android 11
• I/O: 2× USB, 1× RJ45 (LAN)
• Wireless: Wi‑Fi 2.4G/5G
• Front light / Cover glass: optional
• Power input: DC 20V; Max power (during update): 13.5 W; Typical power: 0.6 W
• Dimensions (W×H×D): 719 × 923 × 49.8 mm; Weight: 15.5 kg
• Mounting: VESA 100×100, 200×200
• Operating temperature: -15 °C to 65 °C; Storage temperature: -25 °C to 70 °C
