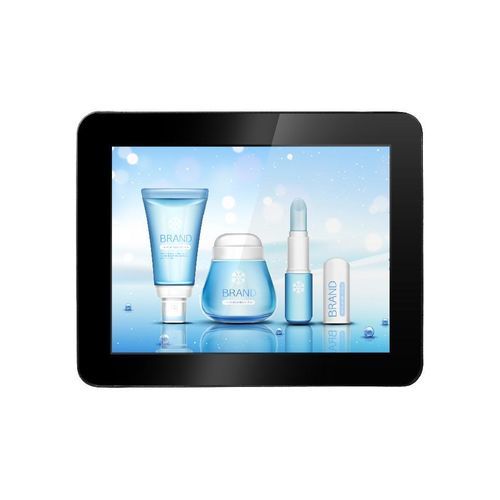

Liquid crystal monitor ELD1019-R

industrialoutdoorfor digital signage

Product overview The ELD1019-R is a 10" industrial-grade reflective cholesteric liquid crystal display (ChLCD) with bi-stable operation. The panel delivers 1024×768 resolution and supports 16.7M colors. ECOgreenpixel technology reduces power consumption while maintaining reliability, making the module suitable for outdoor and transportation installations where reflective, low-power displays are required.

Short Description 10" Cholesteric Liquid Crystal Display (ChLCD), reflective, bi-stable, 1024×768

Features

• Bi-stable cholesteric display for ultra-low power hold state
• Reflective ratio: 29%
• Typical refresh time: 1.7 s
• Protection cover glass
• Low power consumption (typical 5.3 W, standby 2.8 W)
• Built-in main board with Quad-core Cortex-A55 processor and Android 11 support

Introduction / Additional Information The ELD1019-R is designed for industrial applications that require readable displays in sunlight with minimal power draw. The reflective ChLCD architecture and ECOgreenpixel optimizations make it appropriate for outdoor signage, vehicle interiors, and other transportation-mounted displays. Optional flash and storage configurations allow local content and system customization.

Specifications (table) Model Name: ELD1019-R
Description: 10" Reflective ChLCD, Bi-Stable, 1024×768
Screen Size: 10"
Display Area (mm): 203.37 (H) × 152.52 (V)
Reflective Ratio: 29%
Resolution: 1024×768
Aspect Ratio: 4 : 3
Contrast Ratio: 5.5 : 1
Pixel Pitch (mm): 0.1986 (H) × 0.1986 (V)
Pixel Per Inch (PPI): 128
Viewing Angle: 140° (H), 140° (V)
Color Saturation (NTSC): 17%
Display Colors: 16.7M
Refresh Time (Typical): 1.7 s
Main Board Processor: Quad-core Cortex-A55
Operating System: Android 11
Flash Memory: 4GB (optional)
Storage Memory: 16GB (optional)
Input Interface: USB 2.0
Display Interface Output: HDMI
Input Power: DC 5V
Power Consumption: 5.3 W (standby 2.8 W)
Dimensions (mm): 252.16 × 201.32 × 30.72
Bezel Size (U/B/L/R): 24.4 / 24.4 / 24.4 / 24.4 mm
Weight (Net): 9.5 kg
Mounting: 100 × 75 mm
Operating Temperature: -20 °C ~ 70 °C
Storage Temperature: -20 °C ~ 70 °C

Technical specifications

• Model: ELD1019-R
• Panel type: Reflective Cholesteric Liquid Crystal Display (ChLCD), bi-stable
• Active/display area: 203.37 × 152.52 mm
• Resolution & aspect ratio: 1024 × 768, 4:3
• Color depth: 16.7M colors
• Reflective ratio: 29%
• Typical refresh time: 1.7 s
• Viewing angles: 140° horizontal / 140° vertical
• Contrast ratio: 5.5 : 1
• Pixel pitch / density: 0.1986 mm / 128 PPI
• Main board: Quad-core Cortex-A55 processor
• Operating system: Android 11
• Optional storage: Flash 4GB / eMMC 16GB
• External I/O: USB 2.0 (input), HDMI (display output)
• Power: DC 5V; typical power consumption 5.3 W (standby 2.8 W)
• Mechanical: 252.16 × 201.32 × 30.72 mm; bezel 24.4 mm all around; mounting 100 × 75 mm
• Weight: 9.5 kg (net)
• Operating / storage temperature range: -20 °C to 70 °C
• Target applications: outdoor installations, transportation and other low-power, sunlight-reflective scenarios
