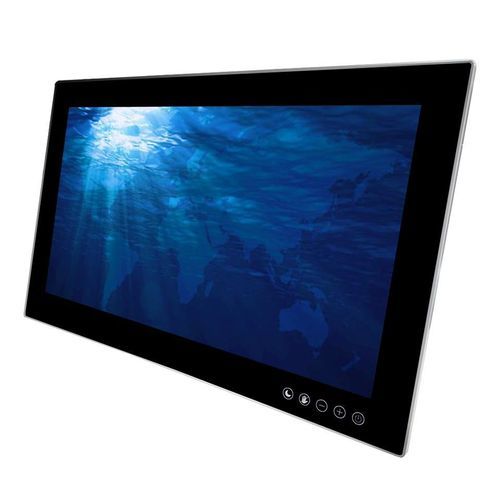

Panel PC with touch screen IMRP-2435-TGL0-WP00-4001

LCDTFT LCDLED backlight

Overview
The IMRP-2435 is a 24" industrial Panel PC featuring a 1000 cd/m² sunlight-readable FHD (1920x1080) LCD with high-transmittance color filter and polarizing plates. Designed for outdoor and harsh environments, it combines low power consumption, IP66 front protection and a fanless design for reliable operation in kiosks, POS, marine, transportation and industrial display applications.

Main features

• Sunlight readable (1000 cd/m²)
• LED backlight with BL MTBF 70,000 hours
• FHD (1920x1080) resolution
• High shock and vibration resistance
• Wide viewing angle
• High uniformity
• Low EMI noise
• Wide dimming range
• IP66 front protection
• Fanless design
• Touch support with 5 physical control keys

Applications

• Kiosk
• Advertising / Digital signage
• Point of Sale (POS)
• Marine
• Transportation
• Gaming
• Studio display
• Gas pump

Technical details
Built-in computing components include an Intel i3-1115G4E CPU, 8GB DDR4 RAM and 256GB SSD. I/O provides 2 DisplayPort, 2 LAN, 4 NMEA, 8-pin GPIO, RS-232, RS-232/422/485, 4x USB and audio line-in/line-out/mic-in. Power input supports 24V ~ 110V DC.

Specifications

• Model Name: IMRP-2435-TGL0-WP00-4001
• Description: 1000 nits, 1920 x 1080
• Screen Size: 24"
• Display Area (mm): 531.36 x 298.89 mm
• Brightness: 1000 cd/m²
• Resolution: 1920 x 1080 (FHD)
• Contrast Ratio: 4000 : 1
• Pixel Pitch (mm): 0.276 (H) x 0.276 (V)
• Pixel Per Inch (PPI): 91
• Viewing Angle: +89° ~ -89° (H), +89° ~ -89° (V)
• Input Interface (power): 24V ~ 110V DC input
• CPU: Intel i3-1115G4E
• I/O Interface: 2x DisplayPort, 2x LAN, 4x NMEA, 8-pin GPIO, 1x RS-232, 1x RS-232/422/485, 4x USB, Audio (Line-in, Line-out, Mic-in), 1x power
• RAM: 8GB DDR4
• Storage: 256GB SSD
• Operating Temperature: 0°C ~ 50°C
• Storage Temperature: -20°C ~ 60°C
• Power Consumption: TBC
• Dimensions (mm): TBC
• Touch Control Button: 5 Key (Power, brightness +/-, touch control key, function select key (day mode, dusk mode, night mode))
