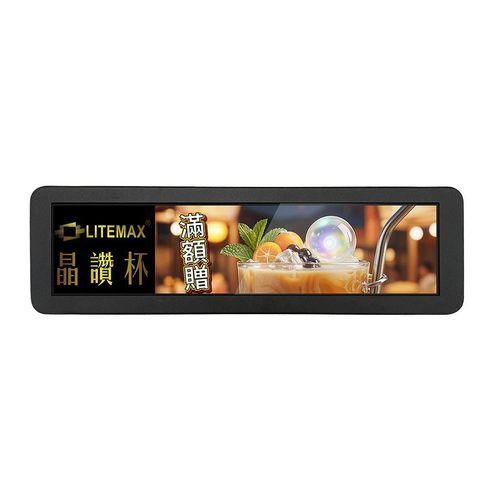

TFT LCD panel PC IPPC-1583-RKC3

LED backlightsunlight-readablequad-core

Overview
The IPPC-1583-RKC3 is a 15.8-inch industrial-grade, sunlight-readable TFT LCD panel with Durapixel LED backlight technology. It provides clear images and accurate colors while supporting low-power operation for outdoor and industrial digital signage, HMI and transportation displays.

Key features

• 15.8” TFT LCD with LED backlight, stretched resolution 2560 x 600
• Brightness: 500 nits (500 cd/m2)
• Quad-core Rockchip RK3566 (ARM Cortex-A55); Mali-G52 GPU
• 2GB LPDDR4 RAM and 16GB eMMC storage
• Android 11.0 operating system
• Full IP54 protection for dust and splash resistance
• Wide viewing angles: 178° horizontal, 178° vertical
• Durapixel LED backlight for improved reliability and power efficiency
• Designed for wide-temperature operation and transportation/digital signage applications

Physical & mechanical

• Overall dimensions (mm): 440 x 130 x 61
• Net weight: 2.3 kg
• Glass: 3 mm tempered glass (product summary) / 53 mm tempered glass (spec table)

Interfaces & Power

• USB 2.0 × 2
• Power connector: Terminal × 1
• Power input: AC 110–240 V
• Power consumption: 20 W

Applications

• Outdoor environments and sunlight-readable signage
• Kiosks and self-service systems
• Factory automation and human-machine interfaces (HMI)
• Transportation displays and passenger information systems
• Gaming cabinets and digital signage

Notes
Includes Durapixel LED backlight technology for enhanced reliability, consistent high brightness and energy efficiency.

Technical specifications

• Model Name: IPPC-1583-RKC3
• Description: 15.8" TFT LCD, 500 nits LED backlight, 2560 x 600
• Size: 15.8"
• Display area (mm): 391.26 (W) × 92.85 (H)
• Brightness: 500 cd/m2
• Resolution: 2560 x 600
• Aspect ratio: Bar type
• Contrast ratio: 1000:1
• Pixel pitch (mm): 152.25 (H) × 152.25 (V)
• Viewing angle: 178° (H), 178° (V)
• Glass: 53 mm tempered glass (spec table) / 3 mm tempered glass (product summary)
• IP level: Full IP54
• CPU: Rockchip RK3566 Quad-core ARM Cortex-A55
• GPU: Mali-G52
• RAM: 2GB LPDDR4
• Storage: 16GB eMMC
• Interface: USB2.0 × 2, Power (Terminal) × 1
• OS: Android 11.0
• Power input: AC 110–240 V
• Power consumption: 20 W
• Dimensions (mm): 440 x 130 x 61
• Weight (Net): 2.3 kg
• Operating temperature: 0 °C to 60 °C
• Storage temperature: -25 °C to 75 °C
