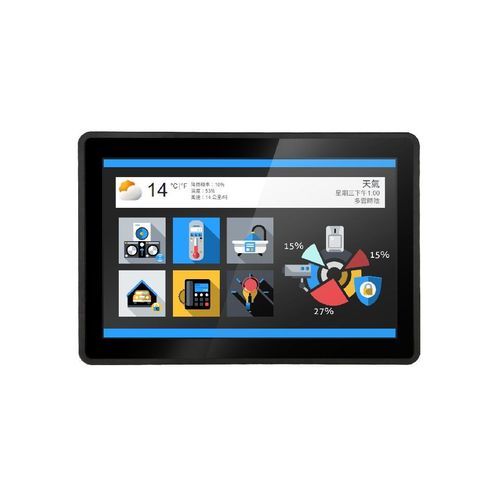

LCD monitor IPPD-1015-ADB0

LED backlightPCAP touchscreenindustrial

Description
The IPPD-1015-ADB0 is a 10.1-inch industrial sunlight readable LCD with 1000 cd/m² brightness. The LED backlight delivers reliable operation and low power consumption, producing sharp images, clear text and accurate colors. Integrated PCAP touch with OCA bonding and multiple video inputs make the module suitable for outdoor displays, kiosks, factory automation, transportation, military and gaming systems. The display supports VESA mounting and is designed for integration in demanding environments.

Features

• 10.1-inch sunlight readable display, 1000 cd/m² brightness
• Resolution: 1920 x 1200 (16:10)
• Video interfaces: HDMI, DisplayPort (DP), USB Type-C with PD
• PCAP touch panel with OCA bonding
• Wide operating temperature range (manufacturer lists -20°C to 70°C)
• Low power consumption; backlight MTBF: 30,000 hours
• Wide viewing angles, 16.7 million display colors

Technical specifications

• Model name: IPPD-1015-ADB0
• Summary: 10.1", 1000 cd/m², 1920 x 1200, T2070, PCAP (T=85%), OCA, Front IP44, AEXP-ADB0-2556, 1 HDMI / 1 DP / 1 USB Type-C (PD) / 1 USB Type-A / 1 Audio, DC 12V
• Display size: 10.1-inch
• Display area (mm): 216.81 (H) x 135.5 (V)
• Brightness: 1000 cd/m²
• Resolution: 1920 x 1200
• Aspect ratio: 16:10
• Contrast ratio: 1800:1
• Pixel pitch: 0.1129 x 0.1129 mm
• Pixel density: 224 PPI
• Viewing angle: 170° (H) / 170° (V)
• Color gamut (NTSC): 80%
• Display colors: 16.7M
• Response time (typical): 35 ms
• Panel interface: eDP
• Video interface: HDMI, DP, USB Type-C
• Touch interface: USB
• Input power: DC 12V
• Power consumption: 10W (typical)
• OSD keys: 4 keys (Power, Menu, +, -)
• OSD control: Brightness, Color, Contrast, Auto Tuning, H/V Position
• Dimensions (mm): 250.8 x 174.85 x 34
• Weight (net): 1.2 kg
• Mounting: 75 x 75 mm VESA
• Operating temperature: spec table 0°C ~ 60°C; product summary indicates -20°C ~ 70°C
• Storage temperature: -30°C ~ 80°C
• Backlight MTBF: 30,000 hours
