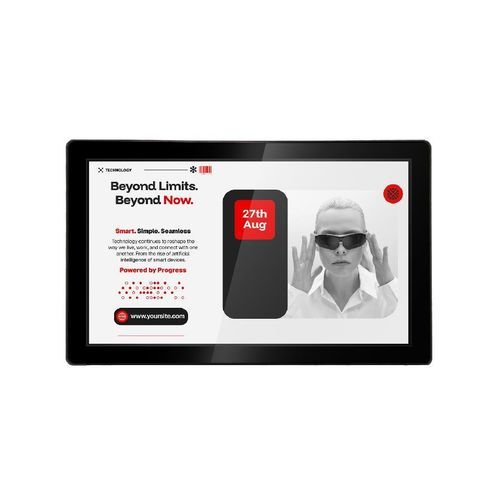

TFT-LCD monitor IPPD-1858-ADB0

LED backlightPCAP touchscreenindustrial

Introduction
The IPPD-1858-ADB0 is an 18.5" industrial-grade sunlight-readable TFT LCD featuring a 1600 nits Durapixel LED backlight and 1920x1080 FHD resolution. It delivers sharp images and accurate color saturation for outdoor and demanding environments such as kiosks, factory automation, transportation and military systems. OCA bonding with projected capacitive (PCAP) touch enhances optical clarity and touch responsiveness.

Main features

• 18.5" TFT LCD, FHD 1920x1080, 1600 nits (sunlight-readable)
• Durapixel LED backlight, BL MTBF 100,000 hours
• Projected capacitive touch (PCAP) with OCA bonding (PCAP sensitivity ~85%)
• Wide viewing angles: 176° H / 176° V
• Wide temperature range mentioned: -20°C to 70°C (spec table lists 0°C to 60°C)
• Multiple video inputs: HDMI, DisplayPort, USB Type-C; plus USB Type-A and audio
• Front protection: IP44; mounting: VESA 75x75 & 100x100
• Low power consumption: typical 40W; input DC 12V

Specification
Model: IPPD-1858-ADB0
Display: 18.5", 1920 x 1080 (FHD), 16:9; active area 408.9 x 230 mm; pixel pitch 0.213 mm; PPI 119
Brightness: 1600 cd/m² (nits)
Contrast ratio: 1120:1; colors: 16.7M; color saturation ~85% NTSC; response time typical 25 ms
Interfaces: Panel LVDS; video: 1x HDMI, 1x DisplayPort, 1x USB Type-C; touch: USB (PCAP); ports: 1x USB-A, 1x Audio
Power & dimensions: Input DC 12V; power ~40W (reference); dimensions 461 x 281.64 x 29.8 mm; net weight 3.6 kg
Environmental: Operating temp listed as 0°C to 60°C (feature list also cites -20°C to 70°C); storage -30°C to 80°C
OSD & controls: 4 keys (Power, Menu, +, -); OSD functions include brightness, color, contrast, auto tuning, H/V position

Technical specifications

• Product: IPPD-1858-ADB0 (18.5" sunlight-readable industrial TFT LCD)
• Panel: 18.5", FHD 1920x1080, 16:9
• Brightness: 1600 cd/m²
• Viewing angle: 176° H / 176° V
• Touch: PCAP with OCA bonding (PCAP ~85%)
• Backlight: Durapixel LED, BL MTBF 100,000 hours
• Interfaces: HDMI, DP, USB Type-C, USB-A, Audio; panel LVDS
• Power: DC 12V; typical consumption 40W
• Mechanical: 461 x 281.64 x 29.8 mm; net 3.6 kg; VESA 75x75 & 100x100
• Environmental: Operating temp 0°C–60°C (see note); storage -30°C–80°C
