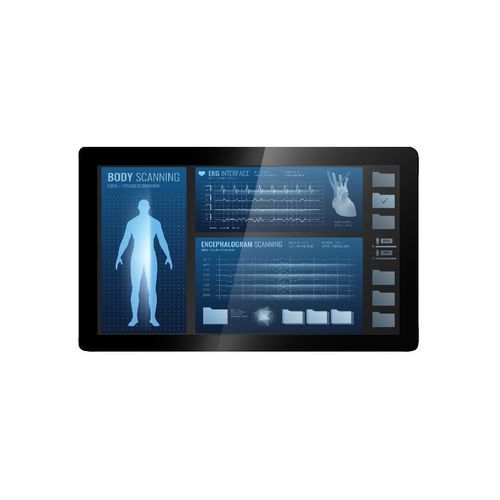

TFT-LCD monitor IPPD-1563-ADB0

LED backlightPCAP touchscreenindustrial

Overview
The IPPD-1563-ADB0 is a 15.6" industrial-grade TFT LCD with 500 nits brightness and Full HD (1920×1080) resolution. It integrates projected capacitive touch (PCAP), Ubipixel LED backlight and multiple video inputs including HDMI, DisplayPort and USB Type-C with PD 100W. Designed for indoor industrial applications such as kiosks, factory automation, transportation control panels, defence systems and gaming consoles where reliable display performance, low power consumption and long backlight life are required.

Key features

• Projected capacitive touch (PCAP)
• Brightness: 500 nits (cd/m²)
• Resolution: 1920 x 1080 (Full HD)
• Video inputs: HDMI, DisplayPort (DP), VGA, USB Type-C with video
• USB Type-C with PD 100W support
• Backlight: Ubipixel LED, MTBF 100,000 hours
• Aspect ratio 16:9, viewing angle 178°/178°
• Low typical power consumption: 20 W

Specifications (table)
Model name: IPPD-1563-ADB0
Description: 15.6", 500 nits, 1920x1080, T2070, LID on LCM, PCAP (T=85%), ADB0, 1 HDMI / 1 DP / 1 VGA / 1 USB Type-C / 1 USB Type-A / 1 Audio, DC (12V/24V) / USB-C PD 100W
Size: 15.6"
Display area (mm): 344.16 (H) x 193.59 (V)
Brightness: 500 cd/m²
Resolution: 1920 x 1080
Aspect ratio: 16 : 9
Contrast ratio: 1000 : 1
Pixel pitch (mm): 0.17925 (H) x 0.17925 (V)
Pixel per inch (PPI): 141
Viewing angle: 178° (H), 178° (V)
Color saturation (NTSC): 72%
Display colors: 16.2M
Response time (Typical): 25 ms
Panel interface: eDP
Video interface: VGA, HDMI, DP, USB Type-C
Touch interface: USB
Input power: DC12V (supports USB-C PD 100W functionality)
Power consumption: 20W (typical)
OSD keys: 4 Keys (Power, Menu, +, -)
OSD control: Brightness, Color, Contrast, Auto Tuning, H/V Position, etc.
Dimensions (mm): 389.42 x 233.22 x 35.10
Weight (Net): 2.9 kg
Mounting: VESA 75x75, 100x100
Operating temperature: -10 °C to 60 °C
Storage temperature: -20 °C to 70 °C

Technical specifications

• Screen size: 15.6 inch TFT LCD
• Native resolution: 1920 x 1080 (Full HD)
• Brightness: 500 nits
• Touch: Projected capacitive (PCAP), USB interface
• Video inputs: VGA, HDMI, DisplayPort, USB Type-C (with video)
• Power: DC12V input (supports USB-C PD 100W)
• Power consumption: Typical 20W
• Backlight: Ubipixel LED, BL MTBF 100,000 hours
• Viewing angle: 178° / 178°
• Color: 16.2M colors, NTSC 72%
• Response time: 25 ms
• Dimensions: 389.42 x 233.22 x 35.10 mm
• Weight: 2.9 kg
• Mounting options: VESA 75x75, 100x100
• Operating temperature range: -10 °C to 60 °C
