Lightning strike counter LSC-LX01(DE)

electronicEthernet

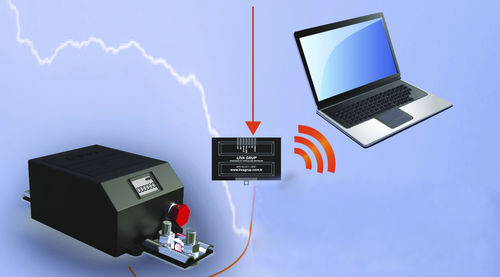

When the device detects a lightning strike, it sends information to an E-Mail Module connected to the device. E-Mail Module has a circuit with Ethernet Port to communicate over the internet. In order for the system to send messages, an active internet connection must be made to the Ethernet Port with the help of a cable. In addition, a message containing the e-mail addresses to be sent and the information to be sent must be uploaded to the device. Within the scope of this information, with the signal coming from the Lightning Counter (indicating that a lightning strike has been detected), the e-mail module sends the loaded message to the relevant telephone numbers and informs that the system has received a lightning strike. Assembly and Connections: The Lightning Counter connection is made with a "serial connection" on the lightning protection system down conductor. In practice, it should be connected to a point that can be followed / seen as easily as possible and will not be damaged. Sample connection details are given above. According to this; In lightning protection systems installed using Active Lightning Rod and / or Simple Capture Rod (Franklin Rod) and landing from a single line, Lightning Counter can be used on the landing line before the test terminal or instead of the test terminal.
