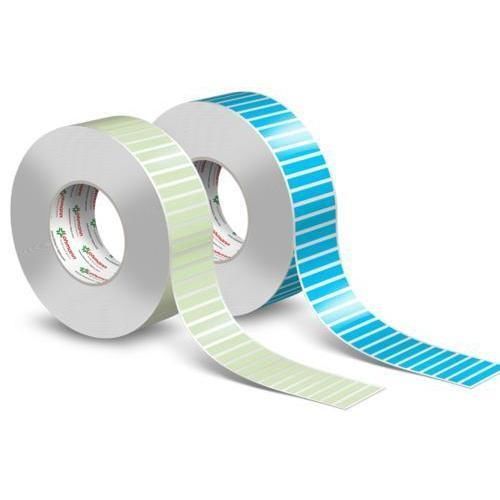

Insulating adhesive tape DuploCOLL® TC

conductivethermally-conductivevibration damping

Overview
High-tech adhesive solutions for thermal and electrical management in electronics. Products are designed for thermal or electrical management and can additionally provide sealing, damping, electromagnetic shielding, light-blocking, vibration and shock absorption, protection or cushioning. Tapes are optimized for customization as die-cut solutions to integrate into automated manufacturing processes.

Available Ranges

• Thermally Conductive Range
• Electrically Conductive Range
• Electrically Insulating Range
• Antistatic Range

Thermally Conductive — DuploCOLL® TC
DuploCOLL TC acrylic transfer tapes offer thermal conductivity (up to 2 W/mK) to enable efficient heat transfer between electronic components. They are free of silicones, halogens and solvents, provide immediate adhesion to irregular surfaces and realize excellent surface wetting. The tapes compensate component tolerances and can seal against dust or moisture. The thermally conductive portfolio meets flame-retardant requirements according to UL 94. In short-term use the tapes are heat resistant up to 180°C. They also offer high electrical insulation properties with breakdown voltage up to 26 kV/mm. All thermally conductive tapes are available as rolls or customized die-cuts in standard thicknesses from 140 μm to 2 mm. Different colors are available to support optical detection in automated processes.

Electrically Conductive — DuploCOLL EC®
DuploCOLL EC tapes use metallized fabric or foam carriers with an electrically conductive acrylic adhesive on one or both sides; a 50 μm transfer tape with conductive adhesive is also part of the portfolio. These solutions are used for low-current electrical interconnections, connections of conductive materials, EMI shielding and grounding, reducing the need for additional connecting wires. Fabric and foam solutions are isotropically conductive in X, Y and Z axes and provide excellent shielding performance in the relevant frequency ranges (supporting 5G applications). Electrically conductive foam tapes are compressible to compensate tolerances between components while providing permanent contact for grounding. All EC tapes are available as rolls or customized die-cuts.

Electrically Insulating — DuploCOLL® IS
DuploCOLL IS adhesive tapes are an extensive portfolio of electrically insulating foam and filmic tapes. When combined with foam, the laminates provide damping and sealing properties to protect sensitive components (e.g., printed circuit boards or flexible busbars). Thanks to isotropic insulating properties, these bonding solutions protect against dielectric breakdown and enable safe battery operation. The range offers excellent temperature resistance for use as a heat barrier in final applications or during production. All IS tapes are available as rolls or individual die-cuts.

Antistatic — DuploCOLL® AS
DuploCOLL AS single-sided adhesive films protect TFT and LCD modules and optically bonded touch displays against dust, scratches and electrostatic discharge thanks to an antistatic film carrier and adhesive. They provide excellent temperature and humidity resistance and allow clean removal after extended bonding. Antistatic tapes support reliable operation of touch sensors and other sensitive electronics in demanding interior environments.

Applications & Benefits
Multifunctional tapes support thermal management (heat transfer, heat barriers), electrical management (EMI/RFI shielding, grounding, conductive interconnects), mechanical protection (damping, sealing, cushioning) and optical/assembly needs (camera-detectable colors, clean removability). Products are supplied as rolls or as custom high-precision die-cut parts to fit automated manufacturing.

Caractéristiques / spécifications techniques

• Series name: DuploCOLL®
• Thermal conductivity (DuploCOLL TC): up to 2 W/mK
• Thermal resistance (short-term): up to 180°C
• Electrical insulation (DuploCOLL TC): breakdown voltage up to 26 kV/mm
• Flame-retardant rating: fulfills UL 94 requirements (thermally conductive portfolio)
• Thickness range (thermally conductive products): approx. 140 μm to 2 mm (standard options)
• Electrically conductive portfolio: metallized fabric or foam carriers with electrically conductive acrylic adhesive (single- or double-sided) and 50 μm conductive transfer tape option
• Shielding performance (electrically conductive solutions): designed for broad frequency support including ranges relevant to 5G
• Conductivity: isotropic conductive behavior in X, Y and Z axes for fabric and foam conductive products
• Foam characteristics: compressible foams to compensate tolerances and maintain contact/grounding
• Antistatic films: protect displays and touch modules against ESD, dust and scratches; offer clean removal after extended bonding
• Materials: silicone-free, halogen-free and solvent-free options where specified
• Form factors: available as rolls or customized die-cuts for integration into automated production
• Color options: available for camera/optical detection in automated assembly
• Additional functions: sealing, damping, electromagnetic shielding, light-blocking, vibration and shock absorption, protection and cushioning
