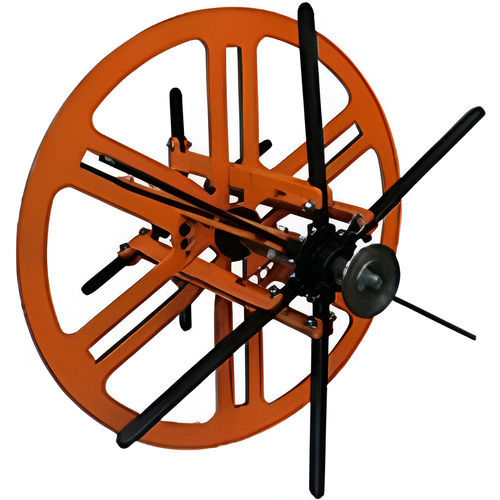

Cable coiler RD 16

manualcoil

This coiler device enables to wind coils of cable without using a wooden drum, build with a front and rear cross piece with six blades and a hub with six sectors. Made to easily tie the coil and to remove the coil of cable effortless Range of application For making coils of cable for D16 machine • Hub of 105-185 mm de Ø • Useful interior width 150 mm • Moving plate to regulate the interior width, mm: 5-150 • Front crosspiece being articulated for the quick extraction of the cable • Single part to attach the beginning of the cable • Device designed to be used into a D16 machine • Coiling device has a maximum capacity of 15Kg Maximum capacity : 15Kg Ø exterior mm : 350 Ø core mm : 105-185 Widht mm : 150 Variable Width mm : 5-150
