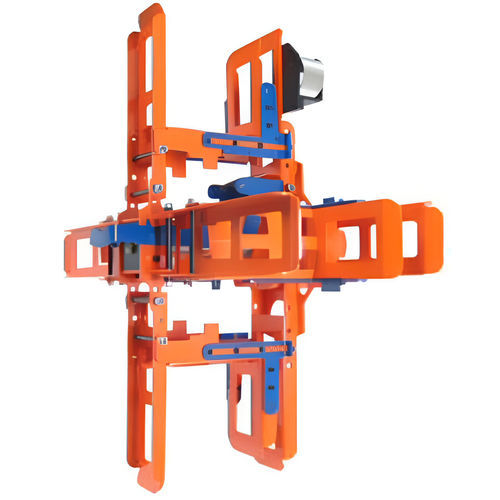

This coiler device enables to wind coils of cable without using a wooden drum, build with a front and rear cross piece with four blades and a hub with four sectors.
Made to easily tie the coil and to remove the coil of cable effortless
Range of application
For making coils of cable without using drums
• Hub of 350 or 420 mm de Ø
• Useful interior width 200 mm
• Four separators to regulate the interior width, mm: 200-150-120-90
• Front crosspiece being articulated for the quick extraction of the cable
• Single part to attach the beginning of the cable
• Device designed to be attach to a TR machine
• Coiling device has a maximum capacity of 150 Kg
Maximum capacity : 150 Kg
Ø exterior mm : 800
Ø core mm : 350 or 420
Widht mm : 200
Variable Width mm : 200-150-120-90
Accessory for : TR
