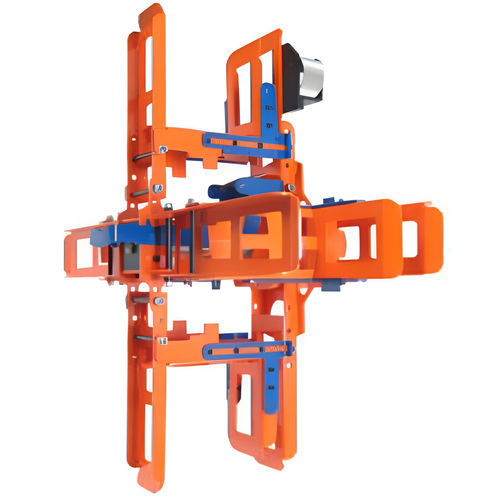

This coiler device enables to wind coils of cable without using a wooden drum, build with a front and rear cross piece with four blades and a core with four sectors.
Made to easily tie the coil and to remove the coil of cable effortless
Range of application
For making coils of cable without using drums
• Core of 390/460/530 mm de Ø
• Useful inner width 250 mm
• Four separators to regulate the inner width, mm: 250-200-150-100
• Front crosspiece being articulated for the quick extraction of the cable
• Clamp to attach the beginning of the cable
• Device designed to be attached to a TR machine
• Coiling device has a maximum capacity of 150 Kg
Maximum capacity 150 Kg
Ø exterior mm - 1000 -
Ø core mm - 390/460/530
Widht mm 250
Variable Width mm - 250-200-150-100
Accessory for - TR
