Elastomer coupling LC shaftsleeve
Add to favorites
Compare this product
Characteristics
- Type
- elastomer
- Product applications
- shaft
- Installation system
- sleeve
- Torque
Min.: 16.27 Nm
(12.000136 ft.lb)Max.: 264.38 Nm
(194.996681 ft.lb)- Rotational speed
1,750 rpm, 3,600 rpm
(10,995.5743 rad.min-1, 22,619.4671 rad.min-1)
Description

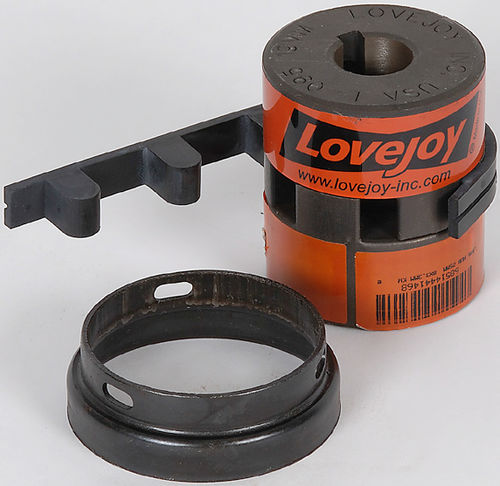

Standard L Type coupling with a snap wrap elastomer with retaining collar
Easy Maintenance (with radially removable elastomer)
Fail Safe – keeps working if elastomer fails (for non-fail safe see Jaw-In-Shear)
A full LC Type coupling is comprised of 4 components:
1 L Type Coupling Hub (size L090 to L225)
1 LC Type Coupling Hub (provides collar attachment)
1 Snap Wrap Center
1 Collar w/ screws
Note: The snap wrap flexible spider design allows for easy removal of the spider without moving the hubs, and close shaft separation all the way up to the hubs maximum bore. Maximum RPM is 1,750 RPM with the SW Type (retaining ring), or 3,600 RPM with the LC Type (with collar). Available in NBR and Urethane only (in limited sizes).
