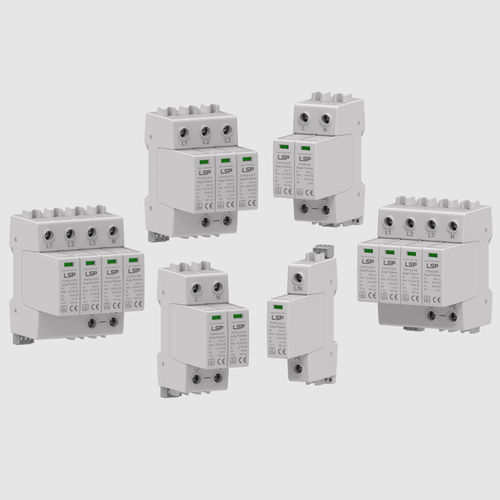

Type 1 surge protector FLP12,5 series

gas discharge tubevaristorAC

We are a trusted surge protection devices manufacturer in China specializing in manufacturing high-quality SPDs. With a thorough understanding of standards and regulations, LSP manufactures millions of surge protection devices (SPDs) every year. Our teams bring surge protection devices (SPDs) with our unique client-focused service & quality to the closest possible to the market demand. DIN-rail AC SPD for single and three phase - FLP12,5 series This type of DIN-Rail AC Type 1+2 surge protection device SPD can protect all electrical installations against lightning strikes by discharging the current created from a lightning surge and keeping it from spreading to the equipment. DIN-rail AC SPD for single and three phase - FLP12,5 series Type 1+2 surge protection device SPD is characterized by a 10/350 µs and 8/20 µs lightning current waveform. Specification: Nominal voltage Un: 120V 230V 400V Max. continuous operating voltage Uc: 150V 275V 320V 385V 440V Type 1+2 / Class I+II / Class B+C Impulse discharge current (10/350 μs) Iimp = 12,5kA @ Type 1 Nominal discharge current (8/20 μs) In = 20kA @ Type 2 Maximum discharge current (8/20 μs) Imax = 50kA @ Type 2 Protective elements: Metal Oxide Varistor (MOV), Gas Discharge Tube (GDT)
