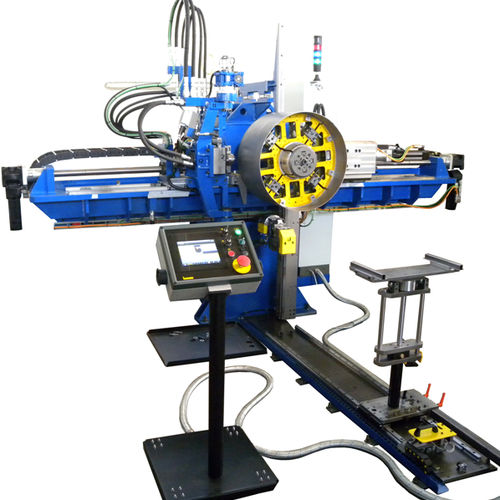

Motorized flanging machine Rotor 4

hydraulicfor air ducts

The Rotor 4 stands out with the efficiency to execute flanging, punching and stiffening re-flanging in a simple and fast fashion on duct. The machine can do all the a.m. operations with an only one positioning of the piece. Ideal machine for axial fans.<br> <br>The main strong points of LUCAS flanging machines are:<br> <br>fast and simple to use, such as for example the quick tool change feature and its user friendly machine programming<br><br>long tool life due to a sturdy construction of the working units with a particular attention to the sliding both for “hydraulic” or “electronic” control of stroke by “brushless” motor and guiding by recirculating balls screws<br><br>Ability to find and develop solutions with a high degree of customization <br><br>Some feature of the machine:<br><br>The flanging-punching and closed re-flanging units are positioned in radial sense respect to the work piece and their positioning is easy and quick thanks to some handwheels and mechanical position indicators.<br><br>The ferrule is clamped directly on the spindle through an expansion equipment which is provided with interchangeable sectors that can be easily manufactured.<br><br>Electrical panel complete with PLC and “touch screen” service panel for work sequence management<br><br>Safety devices: two-handed control button on swivelling console, safety guards at the sides and at the rear of the machine, safety light guard at the front of the machine;<br>
