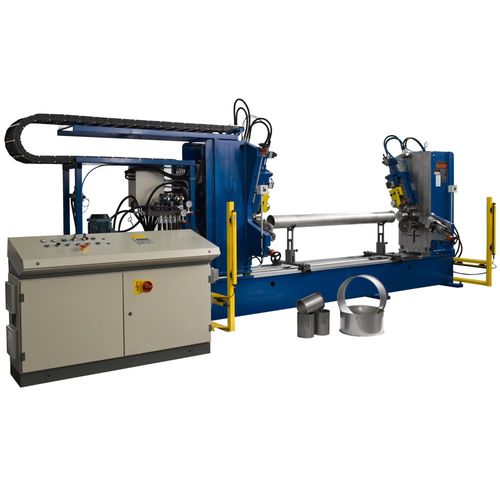

Automatic flanging machine 3/2000
doubletube

automatic flanging machine
automatic flanging machine
Add to favorites
Compare this product


Characteristics

Type
automatic, double
Treated product
tube

Description

The double head flanging machine model 3 / 2000 is the ideal apparatus to flange circular tubes of different lengths. This machine is especially designed to automatically flange outwards and then turn the flanged band on sheet tubes up to 2 meters long. Both sides of the tube can be worked contemporaneously. The machine can equipped also for other operations than flanging (beading, ribbing or curling). The optional electrical working unit for turning and deburring of the flange ensures a perfect finish of the duct. The main strong points of LUCAS flanging machines are: fast and simple to use, such as for example the quick tool change feature and its user friendly machine programming long tool life due to a sturdy construction of the working units with a particular attention to the sliding both for “hydraulic” or “electronic” control of stroke by “brushless” motor and guiding by recirculating balls screws Ability to find and develop solutions with a high degree of customization Working units: with hydraulic or electronic control of the stroke by "brushless" motor Spindle: driven by electric motor with gear motor reduction and inverter (no. 2 spindles); Piece clamping: The piece is clamped directly on the spindle through an expansion equipment which is provided with interchangeable sectors that can be easily manufactured. Electrical panel: complete with PLC and “touch screen” service panel for work sequence management. Safety devices: two-handed control button on swivelling console, safety guards at the sides and at the rear of the machine The machine can be programmed to work two “small” tubes contemporaneously
