Visible polarizer POLAX-32N

dichroicoptical

Product overview

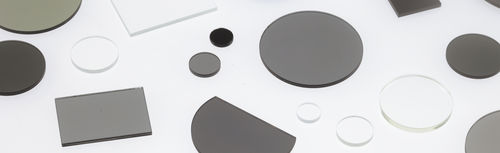

POLAX-32N is a linear polarizing plate in which a dichroic polarizing film is bonded between optical-grade substrates such as quartz and optical glass. Available types cover wavelengths from visible light to infrared for imaging, sensing and optical system applications.

Specification
Item numbers:
POLAX-32N-10
POLAX-32N-20
POLAX-32N-30

Key characteristics

• Polarizer type: Linear polarizing plate with a dichroic polarizing film laminated between quartz or optical-glass substrates
• Wavelength range: Versions for visible through infrared wavelengths
• Axis marks: Optional; products can be supplied without axis marks
• Sizes/shapes: Standard products available; non-standard sizes and shapes can be manufactured

Ordering and customization

• Item numbers: POLAX-32N-10, POLAX-32N-20, POLAX-32N-30
• Customization: Inch sizes can be converted to metric; bespoke dimensions and shapes available on request
• Production: Suitable for prototype quantities and mass production; axis-mark option selectable at order
