Visible polarizer POLAX-42S

dichroicoptical

POLAX-42S

Product overview

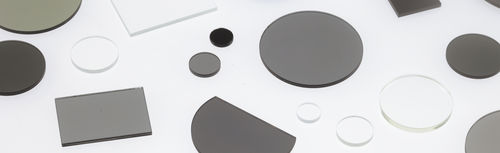

The POLAX-42S is a linear polarizing plate consisting of a dichroic polarizing film bonded between high-optical-quality substrates such as quartz and optical glass. Variants cover wavelengths from the visible spectrum to the infrared, enabling integration in imaging, spectroscopy and polarization-control assemblies for industrial optical systems.

Specifications

• Product type: Linear polarizing plate (POLAX series).
• Polarizing element: Dichroic polarizing film bonded between optical-grade substrates.
• Substrate materials: Quartz and optical glass.
• Wavelength coverage: Types available for visible to infrared wavelengths.
• Available item numbers: POLAX-42S-10, POLAX-42S-20, POLAX-42S-30.

Options

• Axis marks: optional (marks to indicate the optical axis available).
• Custom sizes and shapes: non-standard sizes and custom shapes (including inch-to-metric conversions) available on request.
• Production: suitable for prototype runs and mass production.
