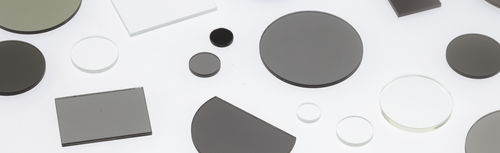

Quartz waveplate RETAX-1/4λ

Product Overview
RETAX is a wavelength phase difference plate composed of a birefringent wavelength film bonded between optical-grade substrates such as quartz and optical glass. Available nominal retardations include 1/4 wavelength, 1/2 wavelength, 1/8 wavelength and sensitive color. Options are available for versions optimized for visibility in the infrared region.

Specification
Item number
RETAX-1/4λ－○○○○－10
RETAX-1/4λ－○○○○－20
RETAX-1/4λ－○○○○－30
※The wavelength value is inserted in the blank part. (Unit: Å Angstroms)

Options
*Products may be supplied without axis marks to indicate the optical axis direction.

Characteristics / Technical specifications

• Product type: Wavelength phase difference plate (wave plate)
• Construction: Birefringent wavelength film bonded between optical-grade substrates
• Substrate materials: Examples include quartz and optical glass
• Available nominal retardations: 1/4 wavelength, 1/2 wavelength, 1/8 wavelength, sensitive color
• Infrared: Options available for infrared-region visibility
• Wavelength unit: Angstrom (Å)
• Item number format: RETAX-1/4λ－○○○○－10 / 20 / 30 (wavelength value inserted in the blank part)
• Axis marks: Option to supply without axis marks indicating optical axis
• Customization: Custom sizes and shapes available; mass-production options possible
