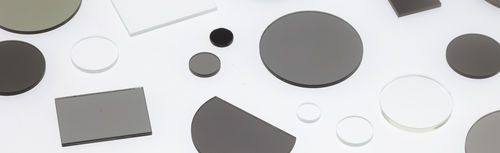

Quartz waveplate SB-RETAX-5L

for linear polarization conversion

Overview
HI-RETAX is a wavelength phase difference plate produced by bonding a birefringent wavelength film between optical substrates such as quartz or optical glass. It is supplied in multiple retardation values for polarization control and chromatic compensation in optical systems.

Product example
SUPER BROAD RETAX (5 Layers) (SB-RETAX-5L-1/4λ)

Specification
Item number
HI-RETAX-△λ-○○○○-10
HI-RETAX-△λ-○○○○-20
HI-RETAX-△λ-○○○○-30

Option
*Available without axis marks indicating optical axis direction.

Documentation
Refer to the general catalog for polarizing plates, wave plates and circular polarizing plates. A specific HI-RETAX leaflet is available for detailed information.

Technical characteristics / specifications

• Product type: Wavelength phase difference plate (wave plate)
• Construction: Birefringent wavelength film bonded between optical substrates
• Substrate materials: Quartz and optical glass (examples)
• Available retardations: 1/4 wavelength, 1/2 wavelength, 1/8 wavelength, sensitive-color variant
• Infrared: Optional versions for infrared-region visibility available
• Example series/model: SUPER BROAD RETAX (SB-RETAX-5L)
• Example layer count: 5 layers for SUPER BROAD RETAX
• Item number patterns: HI-RETAX-△λ-○○○○-10 / -20 / -30
• Option: Available without axis marks to indicate optical axis direction
