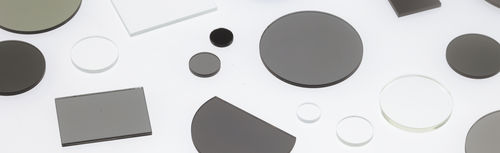

Quartz waveplate HI-RETAX-1λ

Product overview
HI-RETAX-1λ is a wavelength phase difference (wave) plate composed of a birefringent wavelength film bonded between optical-grade substrates such as quartz or optical glass. It provides controlled phase retardation for polarized light in optical assemblies and is supplied in multiple retardation types for visible and infrared applications.

Key features

• Available retardations: 1/4 λ, 1/2 λ, 1/8 λ and sensitive color variants
• Design wavelength example: 530 nm phase difference for the sensitive color variant
• Bonded substrate construction for optical uniformity and stability
• Variants optimized for visible and infrared wavelength ranges

Additional information
Refer to the general catalog of polarizing plates, wave plates and circular polarizers for related products, material options and extended specifications.

Options & customization

• Axis marks: supplied without axis marks by default; axis marks available on request
• Custom sizes and shapes: non-standard dimensions and inch-to-metric conversions available
• Mass production: scalable manufacturing and volume support available

Technical specifications

• Product type: wavelength phase difference plate (wave plate)
• Construction: birefringent wavelength film bonded between optical-grade substrates (e.g., quartz, optical glass)
• Available types: 1/4 λ, 1/2 λ, 1/8 λ, sensitive color
• Design wavelength (example): 530 nm for sensitive color variant
• Item numbers: HI-RETAX-1λ－10, HI-RETAX-1λ－20, HI-RETAX-1λ－30
• Options: axis marks, custom sizes/shapes, mass production capability
