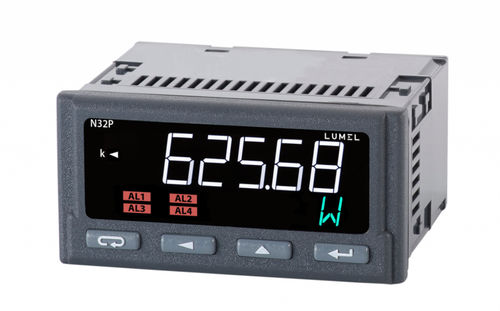

Apparent power power meter N32P

active powerdigitalsingle-phase

From the Q4 of 2021 the offer of Lumel digital meters has been extended by the introduction of N32P a programmable meter for 1-phase power network parameters N32P meter distinguishes: - modern and easy-to-read LCD display - universal measuring input - RS-485 digital output as a standard. N32 meter is destined to measure -single-phase network parameters: voltage, current, active, reactive and apparent power, cosφ, tgφ, frequency, active, reactive and apparent energy, active power 15 minutes, voltage 10 minutes. -current and voltage harmonics analysis up to 51st (measurements available via RS-485). Programmable input: -current 0…1 or 0…5A -voltage 0…100V / 0…230V / 0…400V Output: -analog 0/4...20mA or 0...10V (option) -relays (1 or 4) -binary (OC) Features: -two-line LCD display with high contrast and built-in backlighting. -possibility of displaying the measured value and time simultaneously or an second measured value or unit (automatically displayed unit of measured quantity). -high sampling frequency of measured signals 8 kHz. -parameters programming via buttons or RS-485 interface and free eCon software. -4 alarm outputs with signaling on led diodes, working in 7 different modes (option). -possibility to program each of the alarms to react to a different measurements. -the function of the switch-on delay and switch-off delay of the alarm with the alarm event memory. -pulse output to control energy consumption. -conversion of any measured value into an analog signal 0/4...20 mA or 0...10V (option). -memory of minimal and maximal values for all measured quantities.
