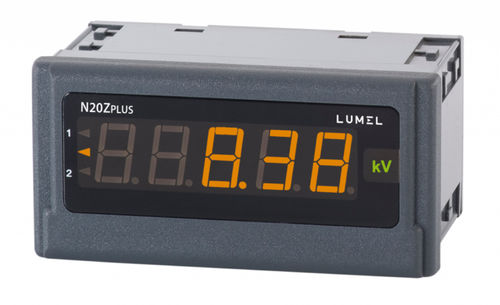

The N20ZPLUS meter is a digital programmable panel instrument destined for measurements of a.c. voltages, a.c. currents, or frequency. The readout display is a LED display which enables the exposition of results in red, green or orange colour.
-input:
- a.c. current: 1 A, 5 A,
- a.c. voltage: 100 V, 250 V, 400 V
- frequency: 20...500 Hz.
-2 alarm outputs of OC type (4 types of alarms) signaled by highlight of the alarm index,
-digital output RS485 with Modbus RTU protocol
-protection level ensured by the housing: IP65,
-readout field: 5 three-colour LED displays of 14 mm height,
-highlighted measuring units,
-supply: 85...253 V a.c./d.c. or 20...40 V a.c./d.c.
-overall dimensions: 96 x 48 x 64 mm.
For the configuration of the N20ZPLUS is destined free eCon software. Parameters which can be reprogrammed are as follows:
-display colour, individually in three intervals,
-thresholds of displayed overflows,
-display precision of the result (decimal point),
-highlight of the unit,
-kind of the measured signal a.c. or a.c. + d.c. (True RMS),
-averaging time of the measurement,
-recounting of indications (individual characteristic),
-two alarms of OC type operating in six working modes.
