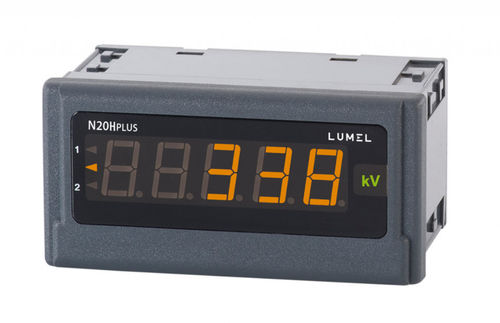

Voltage panel meter N20HPLUS

digitalLEDpanel-mount

The N20HPLUS meter is a digital programmable panel instrument destined for measurements of d.c. voltages up to 400V. The readout display is a LED display which enables the exposition of results in red, green or orange colour. Features: -input:- d.c. voltage: 0...100V; ±100V; 0...400V; ±400V -2 alarm outputs of OC type (6 types of alarms) signaled by highlight of the alarm index, -protection level ensured by the housing: IP65, -readout field: 5 three-colour LED displays of 14 mm height, -highlighted measuring units, -supply: 85...253 V a.c./d.c. or 20...40 V a.c./ 20...60 V d.c. -overall dimensions: 96 x 48 x 64 mm. Meter programming through the RS-485 interface by means of the free eCon software. Parameters which can be reprogrammed are as follows: -display colour, individually in three intervals, -thresholds of displayed overflows, -display precision of the result (decimal point), -highlight of the unit, -averaging time of the measurement, -recounting of indications (individual characteristic), -two alarms of OC type operating in six working modes.
