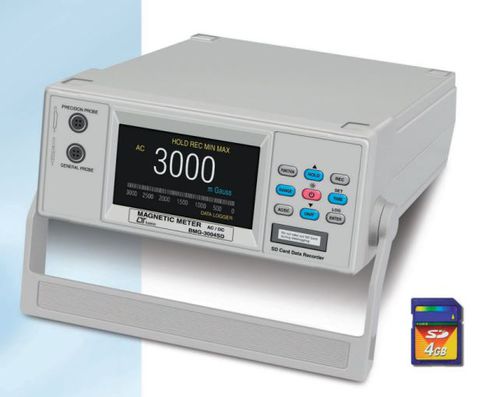

Magnetic field measuring device BMG-3004SD

mechanicalindustriallaboratory

* Real time recorder, save the data into the SD memory card and can be downloaded to the Excel, extra software is no need. * Precision and General magnetic field measurement, 2 in 1 and wide range. * For industrial, mechanical, material, electrical, laboratory field usage. * Two probes are included : Precision probe and General probe. * Precision measurement ( cooperate with the precision probe ) : 1. Use MI sensor, High sensitivity. 2. Measurement ranges : -3,000 mG to 3,000 mG, -300 uT to 300 uT. 3. Unit : mG ( milliGauss ), uT ( micro Tesla ). 4. Resolution : 0.1 mG/1 mG, 0.01 uT/0.1 uT. * General measurement ( cooperate with the general probe ) : 1. Use Hall sensor with automatic Temp. compensation. 2. Measurement ranges : DC : 300.00 mT/3000.0 mT, 3,000.0 G/30,000 G AC : 150.00 mT/1500.0 mT, 1,500.0 G/15,000 G 3. Unit : mG ( milli Gauss ), uT ( micro Tesla ). 4. Resolution : 0.1 G/1 G, 0.01 mT/0.1 mT. * DC and AC magnetic field measurement. * N pole/S pole indicator. * Zero button for DC magnetic function. * Data hold, record max. and min. reading. * Separate probe, easy operation and convenient for remote measurement. * RS232/USB computer interface. * Auto shut off is available to save battery life. * SD card capacity : 1 GB to 16 GB. * TFT color LCD, easy reading. * Optional acquisition softwares, SW-U801-WIN, SW-E802, SW-E816. * Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter.
