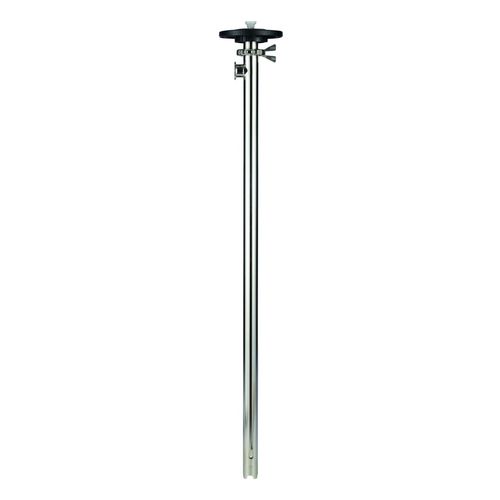

Radial pump LPS-SA-L-VA-G0

for dairy productsfor food productsfor juice

Product information: LPS-SA-L-VA-G0 Sanitary drum pump with EPDM mechanical seal
The LPS-SA-L-VA-G0 Sanitary drum pump unit is designed for the hygienic transfer of low-viscosity liquids from drums and containers. The construction complies with DIN EN 1672-2 for food-contact machinery and combines hygienic design with simplified cleaning.
The pump tube can be dismantled in less than 30 seconds. Alternatively, it can be rinsed or integrated into a CIP system using a suitable device, allowing cleaning processes to be adapted to operational requirements and reducing effort during frequent product changes.
Media-wetted components are mainly stainless steel (1.4404 or 1.4571). Plastics and elastomers comply with EU 1935/2004, EU 10/2011 and FDA requirements. Smooth, rounded surfaces with a roughness of Ra 0.8 minimise deposits and facilitate thorough cleaning.
Depending on the mechanical seal chosen (FPM or EPDM), the pump tube combined with a suitable Lutz drive achieves up to 92 l/min and a head up to 18 mWS. The DN 32 Tri‑Clamp connection enables integration into hygienic hose and process connections.

Your benefits at a glance

• Quick cleaning: Pump tube removable in under 30 seconds; option to rinse or integrate in CIP.
• Hygienic design: Smooth, rounded surfaces and reduced component count for easier cleaning.
• Materials for sensitive processes: Stainless steel wetted parts and plastics/elastomers compliant with food regulations.
• Flexible drive selection: Compatible with suitable Lutz drives.
• Hygienic connection: DN 32 Tri‑Clamp per DIN 32676 for easily detachable hose connections.

Typical applications

• Emptying drums and tanks containing low-viscosity food liquids
• Decanting of sensitive liquids
• Processes with frequent product changes
• Applications with high cleanability requirements
• Food and beverage processing (juices, vinegar, cooking oils, flavourings, dairy products)

Technical characteristics / specifications

• Bearings (material): PTFE
• Certification: FDA-compliant; Regulation (EC) 1935/2004
• Connection: Tri‑Clamp
• Connection Tri‑Clamp (DN): 32
• Delivery head (up to max. mWS): 18
• Flow rate (up to max. l/min): 92
• Density (up to kg/dm³): 1.4
• Drive shaft (material): Stainless steel (1.4571)
• Explosion protection: No
• Immersion depth (mm): 1100
• Immersion tube diameter (max. mm): 41
• Impeller (material): Stainless steel (1.4571)
• Liquid temperature (max °C): 120
• Mechanical seal (material): Carbon, SiC
• Pump tube material (material): Stainless steel (1.4571 / 1.4404)
• Static seal (material): EPDM
• Type of impeller / drive type: Impeller (radial impeller)
• Type of seal: Mechanical seal: EPDM (GLRD)
• Viscosity (up to max. mPas): 150, 750
