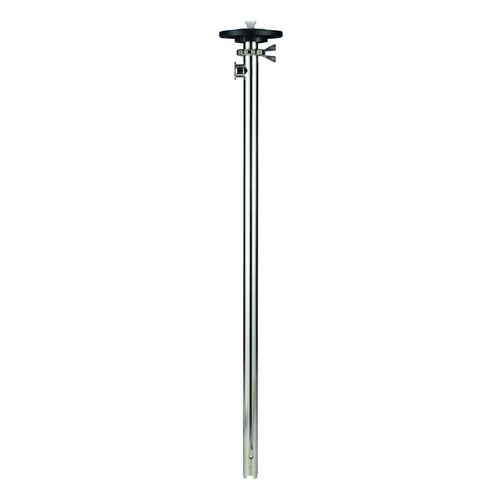

Radial pump LPS-SX-L-VA-G0

beveragefor food productsfor liquids

Product information
The LPS-SX-L-VA-G0 Sanitary Ex drum pump is a hygienic, explosion-capable pumping station for transferring low-viscosity, flammable liquids. It is designed for processes combining strict cleaning requirements and explosion protection (e.g. spirits, flammable alcohols and compatible solvents). The Ex version can be dismantled in under 30 seconds for fast cleaning. The pump tube is rinsable and can be integrated into CIP systems using a suitable adapter. Construction complies with DIN EN 1672-2; wetted parts are mainly stainless steel 1.4404 / 1.4571. Smooth, rounded surfaces (Ra 0.8) facilitate cleaning. The explosion-capable version is ATEX and IECEx certified.

Key benefits

• Hygiene and explosion capability: sanitary design adapted for potentially explosive atmospheres.
• Fast cleaning preparation: dismantling in less than 30 seconds reduces downtime for product changeover.
• CIP-compatible: pump tube can be rinsed or connected to CIP with the appropriate device.
• Easy inspection: few components and smooth surfaces simplify visual checks and maintenance.
• Flexible drives: available with compatible electric or pneumatic Ex drives.

Typical applications

• Spirits and alcoholic liquids
• Flammable alcohols
• Suitable solvents
• Flammable cleaning agents
• Hygienic processes in potentially explosive atmospheres
• Emptying drums and containers of flammable liquids

Technical specifications

• Model: LPS-SX-L-VA-G0
• Connection: Tri-Clamp (DN 32)
• Max. flow rate: up to 92 l/min
• Max. delivery head: up to 18 mWS
• Max. liquid temperature: 120 °C
• Viscosity (indicative): 150 / 750 mPas
• Max. density: 1.4 kg/dm³
• Immersion depth: 1100 mm
• Immersion tube diameter (max): 41 mm
• Wetted materials: Stainless steel 1.4571 / 1.4404
• Impeller material: Stainless steel 1.4571 (radial impeller)
• Drive shaft: Stainless steel 1.4571
• Bearings: PTFE
• Mechanical seal: Carbon / SiC (version shown: EPDM static/secondary seal)
• Static seal: EPDM; seal type: EPDM mechanical seal (GLRD)
• Certifications: ATEX (2014/34/EU), IECEx (Ex version); Regulation (EC) 1935/2004; FDA compliance for selected materials
