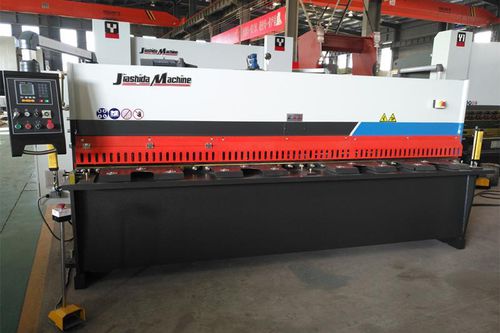

Hydraulic shear QC12Y
copperfor aluminum profilesswing-beam

hydraulic shear
hydraulic shear
hydraulic shear
hydraulic shear
Add to favorites
Compare this product


Characteristics

Operation
hydraulic
Application
copper, for aluminum profiles
Type
swing-beam
Other characteristics
CNC
Plate thickness

2.5 mm, 4 mm
(0.1 in, 0.2 in)

Working length

2,500 mm, 3,200 mm, 4,000 mm, 6,000 mm
(98.43 in, 125.98 in, 157.48 in, 236.22 in)

Pressing force

450 N, 700 N

Description

The QC12Y sheet metal hydraulic swing beam shear with E21S controller works by swinging its top blade to cut material. The shear angle of our equipment is small and the device features high shearing quality with excellent consistency. The machine adopts a swinging structure while it is made up of a machine rack, knife rest, blade gap adjustment system, material pressing system, front gauge, back gauge, hydraulic system, and electrical system. The QC12Y sheet metal hydraulic swing beam shear with E21S controller is primarily used to shear stainless steel, iron, copper, and aluminum workpieces. Shearing machines are widely used in the aviation industry, light industry, metallurgical industry, chemical industry, architecture industry, shipbuilding industry, auto industry, power industry, electric appliance industry and decoration industry. Equipment of the QC12Y Sheet Metal Hydraulic Swing Beam Shear with E21S ControllerEstun E21S CNC control systemBack gauge location controlFrequency inverter controls the back gaugeHIWIN ball screws & polished rod with 0,05mm accuracy.Suspension arm and forearm supportingGermany Bosch-Rexroth hydraulic valveGermany EMB oil tubing connectorGermany Siemens main motorElectrics/France Schneider ElectricsHydraulic & electrical overload protectionLight aligningThe special blade material to cut the stainless steel
