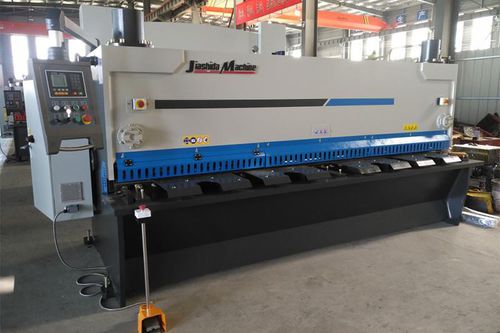

The QC11Y sheet metal guillotine shearing machine with E21S controller was developed by our highly skilled engineers for the shearing process in metal fabrication used in the following applications: aviation industry, light industry, metallurgical industry, chemical industry, architecture industry, shipbuilding industry, auto industry, power industry, electric appliance industry and decoration industry. This type of equipment is suitable for use with stainless steel, iron, copper, and aluminum workpieces.
The shear features a gate structure and is composed of a machine rack, knife rest, blade gap adjustment system, material pressing system, front gauge, back gauge, hydraulic system and Siemens electrical system.
Equipment of the QC11Y sheet metal guillotine shearing machine with E21S controller
Estun E21S CNC control system
HIWIN ball screws & polished rod with 0,05mm accuracy..
Germany Bosch-Rexroth hydraulic valve
Germany EMB tubing connector
Germany Siemens main motor
Hydraulic &electrical overload protection
Lightaligning
Top blade with four cutting edges and bottom blade with four cutting edges.(6CrW2Si)
Angle regulator
Specialized rectangular blade for cutting stainless steel. four cutting edges can be used. long service life.
France Schneider Electrics
Estun E21S CNC system
1. The QC11Y sheet metal guillotine shearing machine with E21S controller features a high definition liquid crystal display screen and programs quickly and conveniently;
2. The intelligent location of the back gauge to eliminate the mechanical hand location;
