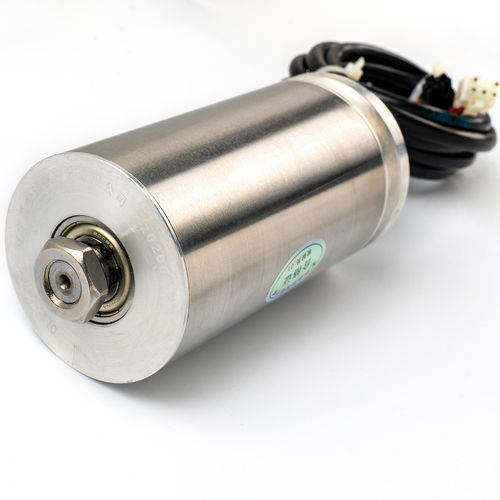

Brushless motorized roller GTJ
48 Vdirect currentfor conveyor

Brushless motorized roller - GTJ - M&D (Motor and Drive) - 48 V / direct current / for conveyor
Brushless motorized roller - GTJ - M&D (Motor and Drive) - 48 V / direct current / for conveyor
Brushless motorized roller - GTJ - M&D (Motor and Drive) - 48 V / direct current / for conveyor - image - 2
Add to favorites
Compare this product
Go to the M&D (Motor and Drive) website for more information

Characteristics

Motor type
brushless
Voltage
48 V
Options
for conveyor, direct current
Diameter

70 mm
(2.8 in)

Description

Product overview
  • Motorized roller with PU coating and sealed design for conveyor and material handling systems.
  • Brushless motor (Type B) integrated for continuous or intermittent operation (S1/S2).
  • Roller diameter Ø70 mm, input voltage DC48 ±10%, speed range 300–1050 rpm, self-cooling.


Technical specifications
  • Motor type: B (brushless motor)
  • Roller diameter: 70 mm
  • Input voltage: DC48 ±10%
  • Working system: S1 / S2
  • Speed range: 300 - 1050 rpm
  • Cooling method: self-cooling


Applications
  • Conveyor lines, packaging, sorting and automated handling equipment.
  • Suitable for installations where a PU-coated surface and sealed construction are required.


Installation & maintenance
  • Designed for inline mounting with standard bearings; verify DC48V power supply and correct polarity before commissioning.
  • Periodic inspection of PU coating and seals recommended to ensure durability and consistent performance.


Ordering information
  • When ordering, specify roller diameter, motor type (B), input voltage and required speed range.
  • Contact supplier for custom options (shaft dimensions, flanges, connector type) and required certifications.
