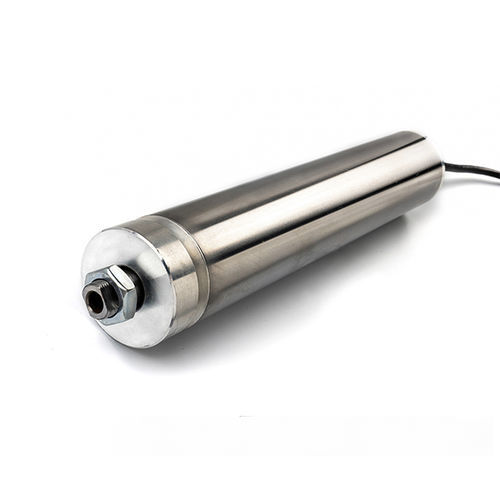

48 V motorized roller for heavy loadsdirect currentfor conveyor
Add to favorites
Compare this product
Characteristics
- Voltage
- 48 V
- Options
- for conveyor, direct current, for heavy loads, for light-duty applications
- Diameter
50 mm, 67 mm
(2 in, 2.6 in)
Description
Product description
Technical specifications
- Suitable for cross-belt sorting machines handling light to heavy packages
- Motor type: permanent magnet servo motor
- Roller outer diameter: 50 mm or 67 mm
- Input voltage: DC 48V / 72V ±10%
- Speed range: 300–750 rpm
- Power: 300–400 W
- Work system: S2-25%
- Control features: high-precision control, rapid response, adjustable acceleration/deceleration, stable loading and unloading
- Package capacity: suitable for packages from 0 to 60 kg
Technical specifications
- Motor type: Permanent magnet servo motor
- Roller outer diameter: 50 mm or 67 mm
- Input voltage: DC 48V / 72V ±10%
- Speed range: 300–750 rpm
- Rated power: 300–400 W
- Duty / work system: S2-25%
- Package capacity: 0–60 kg
- Control features: high-precision control, rapid response, adjustable acceleration/deceleration, stable loading/unloading
