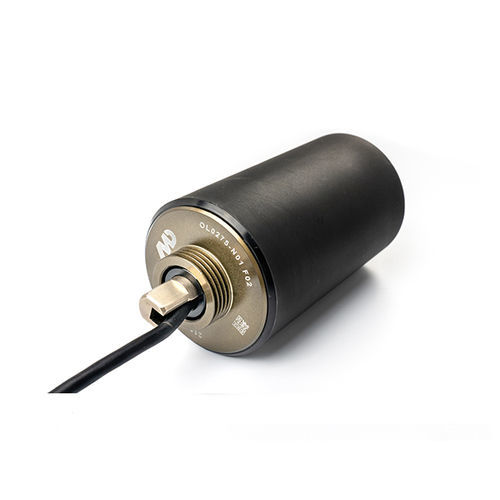

Brushless motorized roller OL0275-N01 F02

BLDC48 Vdriven

Product Brief
High‑precision heavy‑duty motorized conveyor roller (Model OL0275-N01 F02) with industrial polyurethane (PU) surface. Engineered for automated logistics, sorting and continuous material handling applications.

Product Overview
Equipped with a brushless outer‑rotor motor, this PU‑coated SR roller provides stable torque, low noise and long service life under S1 continuous duty. Standard outer diameter is 70 mm and rated voltage is DC48V±10%. The wear‑resistant PU surface ensures reliable grip and abrasion resistance for high‑frequency start/stop and variable‑speed conveyor systems. Designed for system integrators and OEMs, the unit supports plug‑and‑play installation and full customization.

Full Technical Specifications
Core parameters and operational range for integration and design validation.

• Model: OL0275-N01 F02
• Drive motor: Brushless outer‑rotor motor
• Roller outer diameter: 70 mm
• Rated voltage: DC48V±10%
• Rated power: 30 W
• Maximum output torque: 2.5 Nm
• Adjustable speed: 300–1050 rpm
• Working system: S1 (continuous duty)
• Surface: High‑wear industrial polyurethane (PU)

Key Benefits & Business Value

• Reduced downtime and maintenance — PU coating increases wear resistance and slip control compared with bare steel rollers.
• Precise, stable drive — brushless outer‑rotor motor ensures consistent speed and torque during frequent start/stop cycles.
• Energy‑efficient operation — 30 W rated power suitable for continuous 24/7 use while minimizing energy consumption.
• Easy integration — standardized dimensions and DC48V supply simplify connection to common industrial control systems.

Target Industrial & Commercial Applications

• E‑commerce parcel sorting and high‑density logistics lines
• Balance wheel and parcel sortation conveyors for postal/logistics
• Automated warehousing and distribution conveyor systems
• AGV/AMR drive modules and modular conveyor subsystems
• Light industrial assembly and production conveyors

FAQ

• Lead time for bulk orders — Standard bulk (100–5000 units): 15–20 working days. Customized orders: lead time based on requirements.
• Customization options — PU hardness, roller length, voltage range and mounting methods can be customized.
• Service life — Under S1 continuous operation with regular maintenance, typical service life exceeds 30,000 working hours.

Order & Global Support
Minimum order quantity for standard models: 10 units. Shipping options: sea, air, express; door‑to‑door available for bulk orders. Standard warranty: 12 months. OEM/ODM support available for project‑specific adaptations.

Technical Specifications

• Model Number: OL0275-N01 F02
• Drive Motor Type: Brushless Outer Rotor Motor
• Roller Outer Diameter: 70 mm
• Rated Voltage: DC48V±10%
• Rated Power: 30 W
• Maximum Output Torque: 2.5 Nm
• Adjustable Speed Range: 300–1050 rpm
• Working System: S1 Continuous Duty
• Surface Coating: High‑wear industrial polyurethane (PU)
• Typical Service Life: 30,000+ working hours (standard conditions)
• Standard Lead Time (bulk): 15–20 working days (100–5000 units)
• Minimum Order Quantity: 10 units
• Warranty: 12 months
